Rimco Overseas stocks a huge stock of clasp for business, mechanical, utility, and OEM establishments. We have Fasteners, for example, screws, Timber Bolts , fasteners, nuts, washers, and studs accessible in a few evaluations and materials. Alongside the standard latches we likewise stock B7 screws and studs and treated steel, nuts, Timber Bolts, fasteners, and washers. We likewise convey an extensive stock of mechanical grapples, for example, drop-ins, wedge stays, tapcons, lead, plastic, and empty divider grapples.

Rimco Overseas is a full line latch merchant that stocks a wide assortment of items. Regardless of what the particular, we can discover what you're searching for. On the off chance that it's not on our racks we will redistribute the item to guarantee our clients' fulfillment. With K.M Steel India, there is no activity to huge or little. We take into account any latch require.


Rimco Overseas is a noteworthy player in the latch business who handles the requirements of any client. For development, we offer Timber Bolts to every one of the fields with an overwhelming focus in electrical, mechanical, and steel erection contractual workers. We have a huge stock of Timber Bolts , claim to fame screws in the majority of our distribution centers, providing fields, for example, clasp, grapples, channel and swagger adornments.

Rimco Overseas has built up itself as the market head and is perceived for uncommon administration, convenient conveyance, intensity, and absolute arrangements.

Timber Bolts Specifications

Material
Standards
Grades

Nickel Bolts Alloy Timber Bolts

ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472
UNS 2200 (Nickel Bolts 200) / UNS 2201 (Nickel Bolts 201), UNS 4400 (MONEL 400), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600) / UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Stainless Steel Timber Bolts
ASTM / ASME A/SA 193 / 194
B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4
Alloy Steel Timber Bolts
ASTM / ASME A/SA 193 / 194 GR
B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Duplex Steel Timber Bolts
UNS NO. S 31803, S 32205
Range: M10 TO M100, LENGTH UPTO 5 METERS
Nonmetallic Materials:
Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105
High-Temp Alloys
Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330
Copper Base Alloys
Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles
Aluminum Alloys:
1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075
Trademarks:
Carpenter, Armco, INCO, Cabot, DuPont.
Finish:
Black Oxide, Zinc Plating, Hot Dip Galvanized



Timber Bolts Dimensions

Standard Thread Length

  • Bolt lengths ≤ 6″: Thread length = (2 X diameter) 1/4″
  • Bolt lengths > 6″: Thread length = (2 X diameter) 1/2″
  • Note: Most stock timber bolts longer than 12″ in length will have either 6″ or 8″ of thread.

Stock

  • Grade: A307
  • Diameters: 3/4″
  • Lengths: 8″ – 36″ in 2″ increments
  • Origin: Domestic
  • Finish: Hot-dip galvanized

Stock Thread Length

  • Bolt lengths ≤ 12″: 4″ thread
  • Bolt lengths 14″-16″: 6″ thread
  • Bolt lengths ≥ 18″: 8″ thread

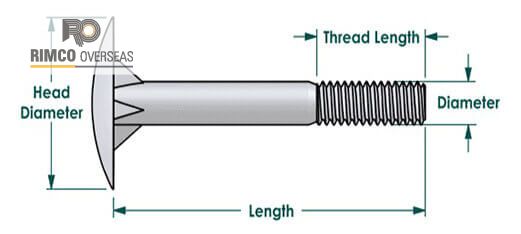

bolts-timber-manufacturer-supplier-importer-exporter-stockholder-dimensional



Bolt Diameter
D
F
H
Body Diameter Max
Head Diameter
Head Height
1⁄2
0.515
11⁄2
1⁄4
5⁄8
0.642
115⁄16
5⁄16
3⁄4
0.768
21⁄4
3⁄8
7⁄8
0.895
25⁄8
7⁄16
1
1.022
27⁄8
1⁄2
11⁄8
1.149
27⁄8
1⁄2
11⁄4
1.277
27⁄8
1⁄2
13⁄8
1.404
3
3⁄8
11⁄2*
1.531
3
3⁄8
* No nubs on underside of head



Stock Timber Bolts

Length
Diameter
3/4″
Galv.
8
18549
10
18553
12
18557
14
18561
16
18565
18
18569
20
18573
22
18577
24
18581
26
18583
28
18585
30
18587
32
18589
36
18595
Other sizes and finishes available on request.



Timber Bolts Material & Grade

  •  304 Stainless Steel Timber Bolts
  •  304L Stainless Steel Timber Bolts
  •  904L Stainless Steel Timber Bolts
  •  17-4PH Stainless Steel Timber Bolts
  •  304H Stainless Steel Timber Bolts
  •  310 Stainless Steel Timber Bolts
  •  321 Stainless Steel Timber Bolts
  •  347 Stainless Steel Timber Bolts
  •  410 Stainless Steel Timber Bolts
  •  310S Stainless Steel Timber Bolts
  •  316 Stainless Steel Timber Bolts
  •  316H Stainless Steel Timber Bolts
  •  316L Stainless Steel Timber Bolts
  •  317 Stainless Steel Timber Bolts
  •  317L Stainless Steel Timber Bolts
  •  321H Stainless Steel Timber Bolts
  •  446 Stainless Steel Timber Bolts


Carbon Steel Timber Bolts

  • A307 Timber Bolts
  • A563 Timber Bolts


Alloy Steel Timber Bolts

  • A193 Timber Bolts
  • A320 Timber Bolts



Inconel Timber Bolts

  • Incoloy 925 Timber Bolts
  • Incoloy 825 Timber Bolts
  • Inconel 625 Timber Bolts
  • Inconel 601 Timber Bolts
  • Inconel 602 Timber Bolts
  • Inconel 603 Timber Bolts
  • Incoloy 800 Timber Bolts
  • Incoloy 800H Timber Bolts
  • Inconel 600 Timber Bolts
  • Inconel 686 Timber Bolts


Monel Timber Bolts

  • Monel K-500 Timber Bolts
  • Monel 400 Timber Bolts


Hastelloy Timber Bolts

  • Hastelloy C22 Timber Bolts
  • Hastelloy C276 Timber Bolts


Titanium Timber Bolts

  • Titanium Grade 5 Timber Bolts
  • Titanium Grade 2 Timber Bolts



Timber Bolts As Per ASTM Specification

  • ASTM A193 Timber Bolts
  • ASTM A307 Timber Bolts
  • ASTM A320 Timber Bolts
  • ASTM A325 Timber Bolts
  • ASTM A354 Timber Bolts
  • ASTM A449 Timber Bolts
  • ASTM A490 Timber Bolts
  • ASTM F593 Timber Bolts
  • ASTM F1554 Timber Bolts
  • ASTM F3125 Timber Bolts



Timber Bolts As Per DIN Specification

  • DIN 6921 Timber Bolts
  • DIN 603 Timber Bolts
  • DIN 2510 Timber Bolts
  • DIN 580 Timber Bolts
  • DIN 582 Timber Bolts
  • DIN 444 Timber Bolts
  • DIN 939 Timber Bolts
  • DIN 933 Timber Bolts
  • DIN 931 Timber Bolts
  • DIN 976 Timber Bolts
  • DIN 912 Timber Bolts
  • DIN 6325 Timber Bolts
  • DIN 6914 Timber Bolts
  • DIN 3570 Timber Bolts
  • DIN 7990 Timber Bolts
  • DIN 1B Timber Bolts
  • DIN 529 Timber Bolts
