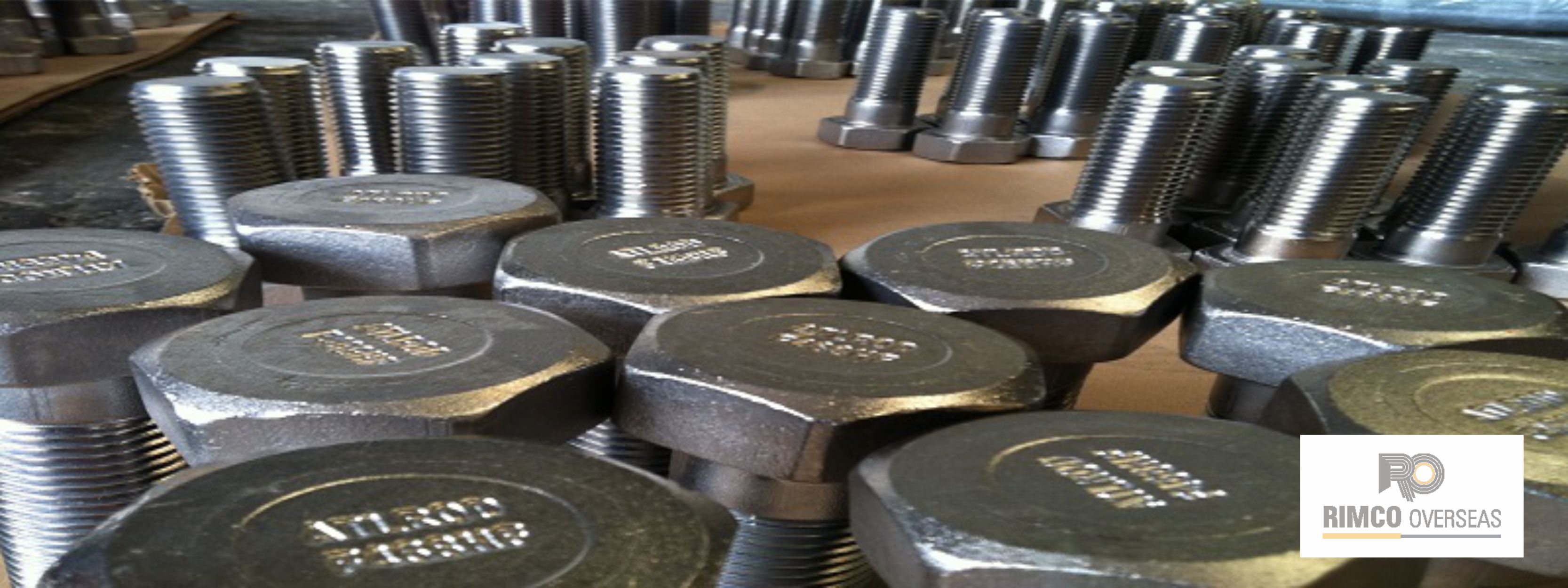

ASTM A354 Bolts

ASTM A354 Bolts

astm-a354-bolts

The ASTM A354 Bolts determinations covers the concoction and mechanical prerequisites of extinguished and tempered composite steel screws, studs, and other remotely strung latches 4″ and under in width. This detail has no limitations in its design and can be a strung bar, headed jolt or a twisted jolt. The ASTM A354 Bolts jolts are not intended to be utilized in applications where they are tensioned to the greater part of their evaluated rigidity. In applications requiring the greater part the appraised elasticity, an overwhelming hex head jolt is suggested.

ASTM A354 Bolts covers the substance and mechanical necessities of extinguished and tempered compound steel screws, studs, and other remotely strung latches 4" and under in measurement. Two quality dimensions, reviews BC and BD.

BD-Grade BD jolts are higher in quality than review BC, and rise to in solidarity to ASTM F3125 review A490 jolts. Dissimilar to A490 in any case, the A354 standard is unhindered in its arrangement. Additionally, since A490 jolts are for basic use and don't surpass 1-1/2" in breadth, A354 review BD ought to be considered for stay jolts, strung bars, different styles of headed jolts, and jolts bigger than 1-1/2" distance across where comparative mechanical properties are wanted. A354 review BD does not require an attractive molecule test like A490, with the exception of when gotten out as a supplemental necessity.

BC-Lower in quality than BD. Ought to be considered in lieu of F3125 review A325 jolts when arrangement and size clashes happen with A325 as portrayed above for review BD and A490 jolts.

This standard characterizes the properties for latches up to 4 creeps in distance across. They are not to be utilized in applications where they are tensioned to over half of their elasticity. In those applications auxiliary substantial hex jolts are to be utilized, as characterized by ASTM A490, despite the fact that they have a similar quality.

ASTM A354 Bolts Specification

ASTM A354 Bolts BD should be considered for anchor bolts, threaded rods, other styles of headed bolts, and bolts larger than 1-1/2". Grade BD bolts are higher in strength than A354 grade BC and equal in strength to ASTM A490 bolts. Unlike ASTM A490 however, the A354 BD specification is unrestricted in its configuration.

Chemical Composition

Element All sizes of Grade BC, Grade BD through 2-1/4” diameter. Grade BD over 2-1/4”
Carbon, % 0.30 to 0.53 0.35 to 0.53
Manganese, % min 0.60 0.60
Phosphorus, % max 0.035 0.035
Sulfur, % max 0.040 0.040
Boron, % max 0.003 0.003
Nickel, % min 0.40
Chromium, % min 0.40
Molybdenum, % min 0.15
Other Alloying Elements * *
*steel is considered to be alloy when the maximum range given for manganese exceeds 1.65 % or a definite minimum quantity for any of the following elements is specified or required within the limits of the recognized field of constructional alloy steels: chromium, molybdenum, nickel, or any other alloying element added to obtain a desired alloying effect.



ASTM A354 Bolts Mechanical Properties

Grade Size Tensile, ksi, min Yield, ksi, min Elong %, min RA %, min Hardness, HRC
BC 1/4 - 2-1/2 125 min 109 16 50 26 - 36
Over 2-1/2 115 min 99 16 45 22 - 33
BD All Sizes 150 - 173 130 14 40 33 - 38



ASTM A354 Bolts-BD / SAE GRADE 8 Bolt Torque Chart

Bolt Size TPI ProofLoad (lbs) ClampLoad (lbs)
Tightening Torque (ft lbs)
Lubricated Plain
1⁄4 20 3,800 2,850 6 12
5⁄16 18 6,300 4,725 12 25
3⁄8 16 9,300 6,975 22 44
7⁄16 14 12,750 9,563 35 70
1⁄2 13 17,050 12,788 53 107
9⁄16 12 21,850 16,388 77 154
5⁄8 11 27,100 20,325 106 212
3⁄4 10 40,100 30,075 188 376
7⁄8 9 55,450 41,588 303 606
1 8 72,700 54,525 454 909
11⁄8 7 91,550 68,663 644 1,287
11⁄4 7 120,000 90,000 938 1,875
13⁄8 6 138,600 103,950 1,191 2,382
11⁄2 6 168,600 126,450 1,581 3,161
13⁄4 5 228,000 171,000 2,494 4,988
2 41⁄2 300,000 225,000 3,750 7,500
21⁄4 41⁄2 390,000 292,500 5,484 10,969
21⁄2 4 480,000 360,000 7,500 15,000
23⁄4 4 517,650 388,238 8,897 17,794
3 4 626,850 470,138 11,753 23,507
31⁄4 4 745,500 559,125 15,143 30,286
31⁄2 4 874,650 655,988 19,133 38,266
33⁄4 4 101,4300 760,725 23,773 47,545
4 4 1,163,400 872,550 29,085 58,100
* SAE J429 grade 8 bolts do not exceed 1-1/2″ diameter.



ASTM Standards Of ASTM A354 Bolts

BD Grade BD bolts are higher in strength than grade BC, and equal in strength to ASTM F3125 grade A490 bolts. Unlike A490 however, the A354 standard is unrestricted in its configuration. Also, since A490 bolts are for structural use and do not exceed 1-1/2” in diameter, A354 grade BD should be considered for anchor bolts, threaded rods, other styles of headed bolts, and bolts larger than 1-1/2” diameter where similar mechanical properties are desired. A354 grade BD does not require a magnetic particle test like A490, except when called out as a supplemental requirement.
BC Lower in strength than BD. Should be considered in lieu of F3125 grade A325 bolts when configuration and size conflicts occur with A325 as described above for grade BD and A490 bolts



Grades

Type Description
Grade BC ASTM A354 Bolts Grade BC is similar to BD with little lower strength.
Grade BD ASTM A354 Bolts Grade BD should be considered for anchor bolts, threaded rods, other styles of headed bolts, and bolts larger than 1-1/2" diameter where similar mechanical properties are desired.



Available ASTM A354 Bolts Other Types

  • ASTM A354 Bolts
  • ASTM A354 Bolts Non Ferrous Bolts
  • ASTM A354 Bolts Hex Bolts Stockist
  • ASTM A354 Bolts Hex Head Bolts Supplier
  • ASTM A354 Bolts Square Bolts
  • ASTM A354 Bolts Exporter
  • ASTM SA354 Screws Dealer
  • A354 Hex Cap Screws Exporter
  • ASTM A354 Bolts Studs Supplier
  • ASTM A354 Bolts Socket Head Cap Screws Supplier
  • ASTM A354 Bolts Manufacturer
  • ASTM A354 Bolts Threaded Rods Exporter
  • ASTM A354 Bolts Heavy Hex Bolts Distributor
  • ASTM A354 Bolts Stockholder
  • A354 Hexagon Bolts
  • ASTM A354 Bolts Hex Head Bolts Stockist
  • ASTM A354 Bolts Screws
  • A354 Hexagon Head Screw Manufacturer in India
  • ASTM A354 Bolts Hexagon Head Cap Bolts
  • ASTM A354 Bolts Studs



Mechanical Properties

Type Size Tensile, min, ksi Yield, min, ksi Elongation, min, % Reduction of Area, min, %
Grade BC 1/4" to 2-1/2"
2-5/8" to 4"
125
115
109
99
16
16
50
45
Grade BD 1/4" to 2-1/2"
2-5/8" to 4"
150
140
130
115
14
14
40
40



ASTM A354 Bolts Industrial Applications

  • ASTM A354 Bolts uses in Aircraft Exhaust Manifolds
  • ASTM A354 Bolts uses in Off-Shore Oil Drilling Companies
  • ASTM A354 Bolts uses in Power Generation
  • ASTM A354 Bolts uses in Petrochemicals
  • ASTM A354 Bolts uses in Gas Processing
  • ASTM A354 Bolts uses in Specialty Chemicals
  • ASTM A354 Bolts uses in Pharmaceuticals
  • ASTM A354 Bolts uses in Pharmaceutical Equipment
  • ASTM A354 Bolts uses in Spiral Welded tube for burner pipes and flues
  • ASTM A354 Bolts uses in Sea Water Equipment
  • ASTM A354 Bolts uses in Heat Exchangers
