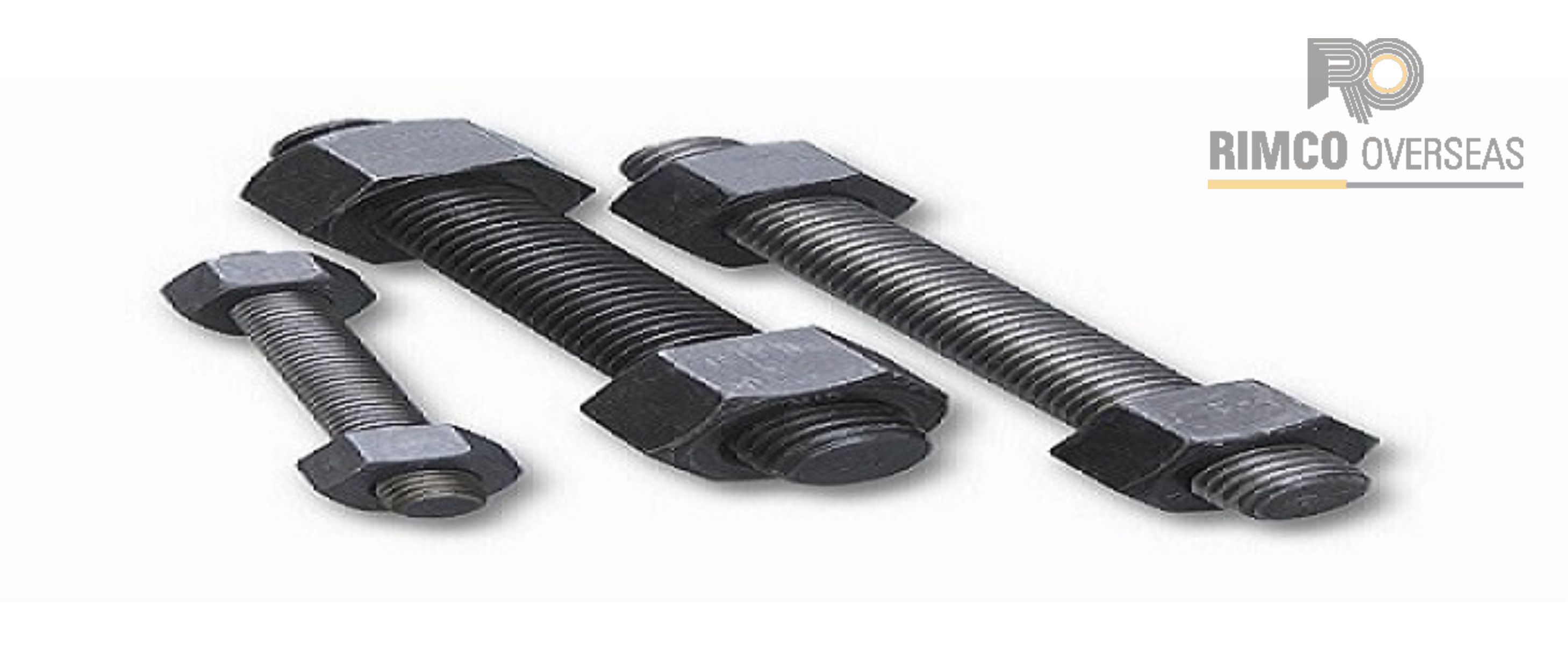

ASTM A453 Bolts

ASTM A453 Bolts

astm-a453-bolts

The determination for ASTM A453 Bolts covers five evaluations of dashing with twelve classes of yield quality running from 50 to 120 ksi (345 to 827 MPa) and is regularly utilized in high temperature administrations, for example, latches for weight vessels and valve spines. The material incorporated into ASTM A453 Bolts requires exceptional handling and isn't proposed for universally useful applications.

The materials incorporated into ASTM A453 Bolts incorporate secured rolled, manufactured, or hot-expelled bars, and furthermore fasteners, nuts, screws, washers, studs, and stud screws.

ASTM A453 Bolts Covers Specification for High temperature Bolting with development co-proficient practically identical to Austenitic Stainless Steel. A453 Covers 5 Types of Material viz. Review 660 Class A/B/C/D, Grade 651 Class A/B, Grade 662 Class A/B, Grade 665 ClassA/B and Grade 668 Class A/B of darting materials. We deliver A453 Grade 660 A/B/C/D Stud Bolts, Hex Bolts ,Expansion bolts,threaded bars and so forth proposed for Special Engineering Applications .TorqBolt Manufactures , Stocks and Supply these A453 Grade 660 A/B/C/D StudBolts, Bolting in different sizes and Coatings.

This determination covers 5 evaluations of darting with twelve classes of yield quality running from 50 to 120 ksi [345 to 827 Mpa] for utilized in high temperature administration, for example, clasp for weight bessel and valve spines. The detail is communicated in both inch-pound units and in SI units. Rimco Overseas essentially stocks and supply A453 Grade 660 Boltings for high temperature benefit. We stock round bar in Grade 660, Grade 651, Grade 665 for speedy assembling these jolts. These jolts are arrangement toughened and age solidified to give most extreme productivity in their applications. We offer Rupture Test Facility for adequate amount arrange. ASTM A453 BoltsM is a measurement buddy to ASTM A453 Bolts including metric sizes stud fasteners, hex screws, attachment head top screws, and so forth.

We offer accurately made Stud Bolts, Hex Bolts, Heavy Hex Bolts, Socket Head Cap Screws according to ASTM A453 Bolts Grade 600, 651, 662, 665, 668 in different malleable class. We deliver these clasp from 3/8" to 4" in majestic and upto M100 in metric sizes. Bigger size jolts can be made to arrange according to ask. We likewise attempt specially designed boltings in A453 according to drawing.



ASTM A453 Bolts Grade 660 Class B Fasteners Specification

Length 3 mm to 200 mm
Size M02 to M30
Specification  ASTM A453 Bolts Grade 660 Class B
Standard  DIN, ASTM, BS and all International Standards



Chemical Composition

Element Content %
Grade 660
UNS S66286
Grade 651
UNS S63198
Grade 662
UNS S66220
Grade 665
UNS S66545
Grade 668
UNS S66285
Carbon 0.08 max 0.28 - 0.35 0.08 max 0.08 max 0.08 max
Manganese 2.00 max 0.75 - 1.50 0.40 - 1.00 1.25 - 2.00 2.00 max
Phosphorus 0.04 max 0.04 max 0.04 max 0.04 max 0.04 max
Sulfur 0.03 max 0.30 max 0.03 max 0.03 max 0.03 max
Silicon 1.00 max 0.30 - 0.80 0.40 - 1.00 0.10 - 0.80 1.00 max
Nickel 24.00 - 27.00 8.00 - 11.00 24.00 - 28.00 24.00 - 28.00 17.50 - 21.50
Chromium 13.50 - 16.00 18.00 - 21.00 12.00 - 15.00 12.00 - 15.00 13.50 - 16.00
Molybdenum 1.00 - 1.50 1.00 - 1.75 2.00 - 3.50 1.25 - 2.25 1.50 max
Tungsten --- 1.00 - 1.75 --- --- ---
Titanium 1.90 - 2.35 0.10 - 0.35 1.80 - 2.10 2.70 - 3.30 2.20 - 2.80
Columbium* --- 0.25 - 0.60 --- --- ---
Aluminum 0.35 max --- 0.35 max 0.25 max 0.50 max
Vanadium 0.10 - 0.50 --- --- --- 0.50 max
Boron 0.001 - 0.010 --- 0.001 - 0.010 0.01 - 0.07 0.001 - 0.010
Copper --- 0.50 max 0.50 max 0.25 max ---



Mechanical Properties

Type Class Tensile Strength Yield Strength Elongation
in 4D, min, %
Reduction
of Area, min, %
Brinell
Hardness
Number
Approximate
Rockwell
Hardness, B & C
Ksi Ksi min max
Grade 660 A, B and C 130 85 15 18 248-341 24 HRC 37 HRC
Grade 660 D 130 105 15 18 248-341 24 HRC 35 HRC
Grade 651 A 100 70A
60B
18 35 217-277 95 HRB 29 HRC
Grade 651 B 95 60A
50B
18 35 212-269 93 HRB 28 HRC
Grade 662 A 130 85 15 18 248-321 24 HRC 35 HRC
Grade 662 B 125 80 15 18 248-321 24 HRC 35 HRC
Grade 665 A 170 120 12 15 311-388 32 HRC 41 HRC
Grade 665 B 155 120 12 15 311-388 32 HRC 41 HRC
Grade 668 A and B 130 80 15 18 248-321 24 HRC 37 HRC
