ASTM A193 Grade B6 Bolts

ASTM A193 Grade B6 Bolts

astm-a193-grade-b6-bolts

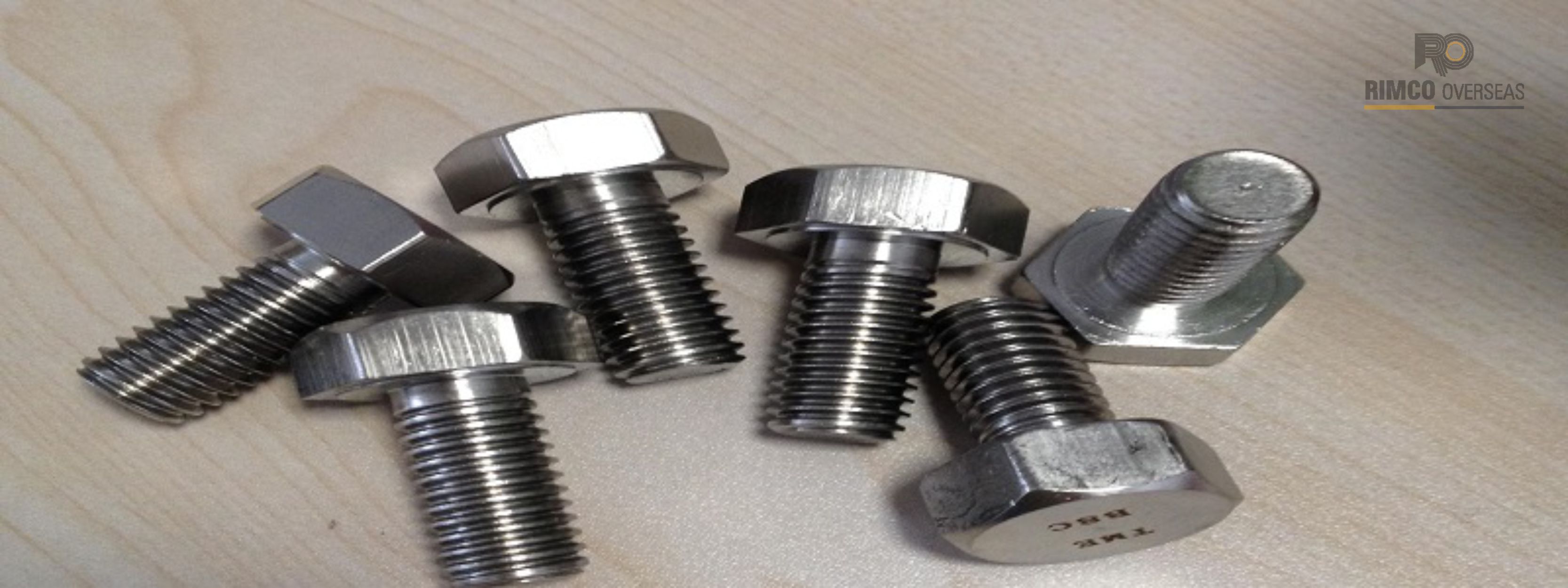

ASTM A193 Grade B6 Bolts bolts and threaded rods are manufactured from AISI 410 stainless steel which has been quenched and tempered to increase strength. Because these bolts are manufactured from stainless steel, they are used in highly corrosive environments with elevated ambient temperatures.

ASTM A193 Grade B6 Bolts is a material detail for high malleable hardened steel screws, stud screws, strung bars and other outside strung clasp. ASTM A193 Grade B6 Bolts Bolts are made from AISI 410 hardened steel bar stock or fashioning stock, machined and warm treated to least of 110-ksi elasticity.

ASTM A193 Grade B6 Bolts is a standard material detail for chromium-ferritic treated steel clasp, for use in high malleable, high temperature and uncommon reason applications, for example, weight funneling weight vessels darting. Review B6 is a warmth treated 12% chromium-ferritic attractive 410 tempered steel with least elasticity necessity of 110 ksi and yield 85 ksi. ASTM A193 particular spreads necessities for substance arrangement, mechanical properties, hardness, warm treatment and prescribed nuts-washers for Grade B6 Fasteners.

Composite Steel Grade B6 Square Bolts, which is exceedingly valued and accessible in the market at pocket reasonable cost. Composite Steel Grade B6 Square Nuts discover application in high pressure applications, brackets, spans, cranes, transport applications, metal skips, lager barrels and drain beats. We are likewise a main producer, dealer and exporter of these Alloy Steel Grade B6 Eye Bolts, which is notable for its highlights like toughness, strong development and simple to work. Subsequent to completing, Alloy Steel Grade B6 Eye Nuts are tried and reviewed for weight, temperature, weight. With steady spotlight on quality, our organization is occupied with offering an immense scope of these Alloy Steel Grade B6 T-Bolts, which is being made with exactness using first rate material and most recent strategies following the modern standards.



Chemical Composition

Element B6
Carbon 0 - 0.15%
Manganese 0 - 1.00%
Phosphorus, max 0 - 0.040%
Sulfur, max 0 - 0.03%
Silicon 0 - 1.00%
Chromium 11.5 - 13.5%
Nickel -
Molybdenum -



Raw Material Description

Grade Raw Material Description
B6 13% Chromium Ferritic Steel (AISI 410 Stainless Steel)



Mechanical Properties

Grade Diameter Tensile ksi, min Yield, ksi, min Elong, %, min RA % min HBW HRC
B6 Up to 4, incl 110 85 15 50 - -
B6X 90 70 16



Other Types Of ASTM A193 B6 Bolts

ASTM A193 B6 Bolts SS ASTM A193 B6 Bolts
Stainless Steel B6 Nuts ASTM A193 B6 Bolts Supplier
ASTM A193 B6 Socket Cap Screw ASTM A193 Bolts Manufacturer
Stainless Steel B6 Studbolt SS ASTM A193 Grade B6 Bolts Head Bolts
ASTM A193 B6 Washers Exporter B6 Stud Bolt
UNS S34700, BS2338 Stud Bolts Exporter DIN 1.4550 Fasteners
ISO Certified B6 Fasteners Exporter ASTM A193 B6 Fasteners
B6 Stainless Steel Bolts ASTM A193 B6 Stud Bolt
ASTM A193 Coupler Nuts Exporter B6 spring washer Stockist
ASTM A193 Grade B6 Bolts Flat Washer ASTM A193 Grade B6 Bolts Countersunk Slotted Screw
ASTM A193 Double Ended Stud Grade B6 Tie Bar Exporter
ASTM A193 B6 Square Bolts Supplier Grade B6 Punched Washer Distributor
ASTM A193 Grade B6 Bolts Lock Nut Supplier B6 Coupler Nuts
Grade B6 Double Ended Stud ASTM A193 Grade B6 Bolts Self Locking Nuts Manufacturer



ASTM A193 B6 Bolts Industrial Applications

»  ASTM A193 B6 Bolts uses in Aircraft Exhaust Manifolds
»  ASTM A193 B6 Bolts uses in Off-Shore Oil Drilling Companies
»  ASTM A193 B6 Bolts uses in Power Generation
»  ASTM A193 B6 Bolts uses in Petrochemicals
»  ASTM A193 B6 Bolts uses in Gas Processing
»  ASTM A193 B6 Bolts uses in Specialty Chemicals
»  ASTM A193 B6 Bolts uses in Pharmaceuticals
»  ASTM A193 B6 Bolts uses in Pharmaceutical Equipment
»  ASTM A193 B6 Bolts uses in Spiral Welded tube for burner pipes and flues
»  ASTM A193 B6 Bolts uses in Sea Water Equipment
»  ASTM A193 B6 Bolts uses in Heat Exchangers
