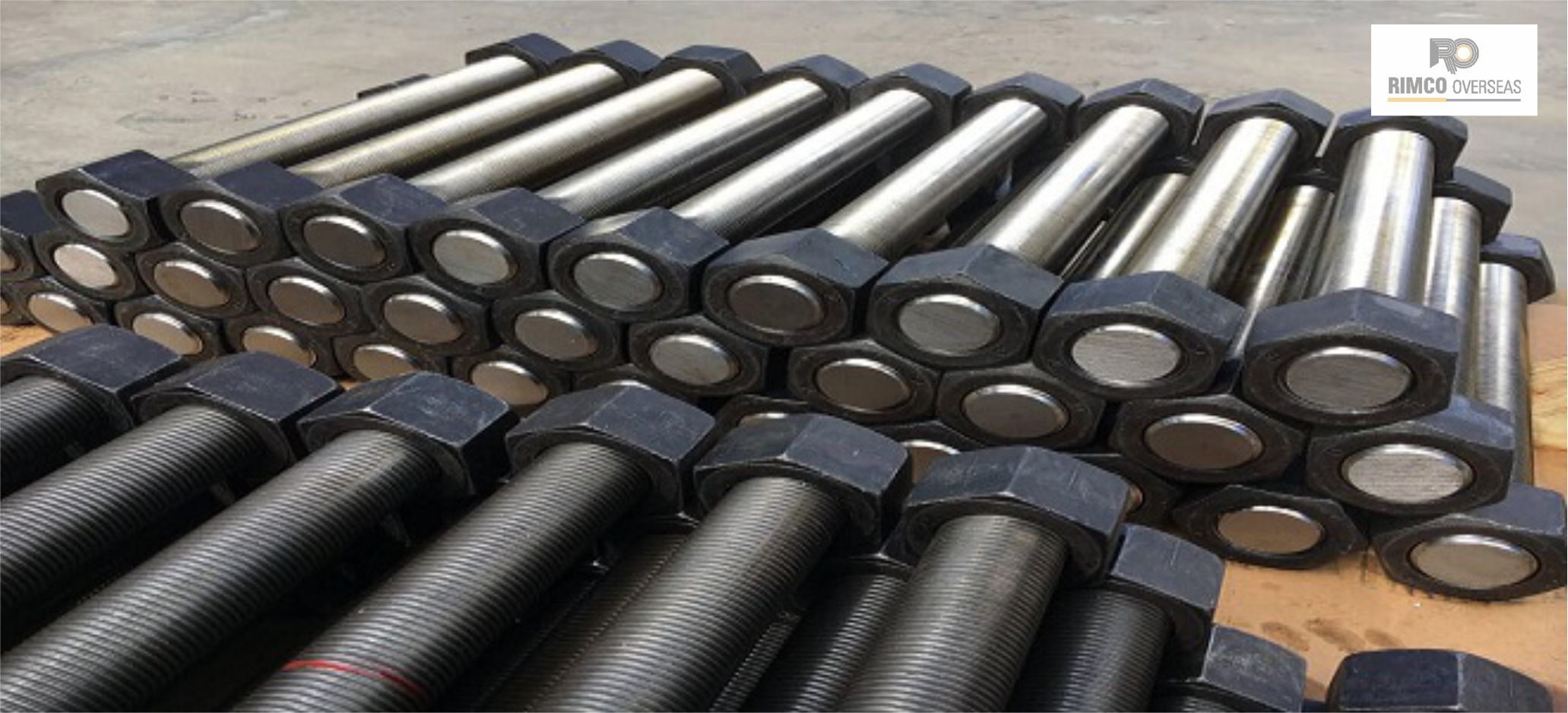

ASTM A193 Grade B16 Bolts and strung studs are made from a chromium-molybdenum-vanadium combination steel. Despite the fact that A193 Grade B16 screws and studs have comparative quality necessities as Grade B7, the vanadium and higher hardening temperature enables the latches to hold their sub-atomic structure and quality under higher encompassing temperatures than Grade B7. Review B16 bolts and studs are utilized in the power and petrochemical ventures on boilers, turbines, and other pressurized gear with lifted temperatures. Not at all like the treated steel reviews inside the A193 determination, Grade B16 has no consumption safe properties except if they are covered.
ASTM A193 Grade B16 Bolts is a review particular for screws, studs, screws, strung poles and other outside strung clasp for high malleable dashing in boilers, weight vessels, valves, pipeline ribs, and fittings proposed for use in high temperature, high-weight benefit or other extraordinary reason applications.
Rimco Overseas fabricates and supplies a wide range of fasteners, studs, screws, strung poles and custom fasteners in ASTM A193 Grade B16 Bolts. We likewise offer A194 Grade 16 Nuts good with A193 Grade B16 Bolts. We deliver these review b16 jolts from b16 round bar stock, accessible in as rolled or warmth treated condition.
Grade B16 is a warmth treated chromium-molybdenum-vanadium (Cr-Mo-V) composite steel with most extreme rigidity of 860 MPa, yield 725, and 35HRC hardness. ASTM A193 review B16 is like review B7 however the expansion of vanadium improves its quality holding limit at high temperatures. Review B16 is appropriate for applications up-to 450°C (840°F). Latches delivered under ASTN A193 Grade B16 standard are chiefly utilized for power age and united areas.
ASTM A193 Grade B16 Bolts Bolts Information
| B7 | Alloy steel, AISI 4140/4142 quenched and tempered |
|---|---|
| B8 | Class 1 Stainless steel, AISI 304, carbide solution treated. |
| B8M | Class 1 Stainless steel, AISI 316, carbide solution treated. |
| B8 | Class 2 Stainless steel, AISI 304, carbide solution treated, strain hardened |
| B8M | Class 2 Stainless steel, AISI 316, carbide solution treated, strain hardened |
| B16 | A heat-treated chromium-molybdenum-vanadium steel for high-pressure, high-temperature service. |
ASTM A193 Grade B16 Bolts Bolts Specifications
| Material | Size | Length | Specification | Manufacturer |
|---|---|---|---|---|
| ASTM A193 Grade B16 Bolts Bolts |
M 02 to M 160
|
3 mm
to 200 mm |
IS BS ASTM |
GKW Unbrako Kundan APL Sundaram Precision Infasco EBY Fastener Etc. |
Chemical Composition
| Carbon | Manganese, max | Phosphorus, max | Sulfur, max | Silicon | Chromium | Molybdenum | Vanadium | Aluminium |
|---|---|---|---|---|---|---|---|---|
| 0.36 - 0.47 | 0.45 - 0.70 | 0.035 max | 0.040 max | 0.15 - 0.35 | 0.80 - 1.15 | 0.50 - 0.65 | 0.25 - 0.35 | 0.015 max |
Raw Material Description
| Grade | Steel Description |
|---|---|
| Grade B16 | Chromium-Molybdenum-Vanadium Alloy Steel, Quenched & Tempered |
Mechanical Properties
| Diameter | Tensile Strength, Min | Yield Strength, Min | Elongation, Min | Reduction, Min | Hardness, Max |
|---|---|---|---|---|---|
| Over M64 to M100 | 760 MPa | 655 MPa | 17 % | 45 % | 321 HBW or 35 HRC |
| Over M100 to M180 | 690 MPa | 585 MPa | 16 % | 45 % | 321 HBW or 35 HRC |
Other Types Of ASTM A193 B16 Bolts
| ASTM A193 B16 Bolts | SS ASTM A193 B16 Bolt |
| Stainless Steel B16 heavy hex bolt | ASTM A193 B16 hex cap screw Supplier |
| B16 Stainless Steel Bolts | ASTM A193 B16 Grub Screw |
| ASTM A193 Anchor Bolt Exporter | B16 Step Bolt Stockist |
| ASTM A193 Grade B16 Bolts U Bolt | ASTM A193 Grade B16 Bolts J Bolt |
| ASTM A193 Socket Cap Screw | Grade B16 Carriage Bolt Exporter |
| UNS S41000 Stud Bolts Exporter | DIN 1.4006 Fasteners |
| ISO Certified B16 Fasteners Exporter | ASTM A193 B16 Fasteners |
| ASTM A193 B16 Hex Head Bolt Supplier | Grade B16 Machine Bolt Distributor |
| ASTM A193 Grade B16 Bolts Plow Bolt Supplier | B16 Anchor Bolt |
| Grade B16 Hanger Bolt | ASTM A193 Grade B16 Bolts Step Bolt Manufacturer |
| Stainless Steel B16 Bolts | ISO Certified ASTM A193 B16 Head Bolts |
| ASTM A193 B16 hex screw Exporter | B16 socket cap screw |
| ASTM A193 B16 countersunk slotted screw | ASTM A193 Bolts Manufacturer |
ASTM A193 B16 Bolts Industrial Applications
» ASTM A193 B16 Bolts uses in Aircraft Exhaust Manifolds
» ASTM A193 B16 Bolts uses in Off-Shore Oil Drilling Companies
» ASTM A193 B16 Bolts uses in Power Generation
» ASTM A193 B16 Bolts uses in Petrochemicals
» ASTM A193 B16 Bolts uses in Gas Processing
» ASTM A193 B16 Bolts uses in Specialty Chemicals
» ASTM A193 B16 Bolts uses in Pharmaceuticals
» ASTM A193 B16 Bolts uses in Pharmaceutical Equipment
» ASTM A193 B16 Bolts uses in Spiral Welded tube for burner pipes and flues
» ASTM A193 B16 Bolts uses in Sea Water Equipment
» ASTM A193 B16 Bolts uses in Heat Exchangers
