Allen Head Bolts

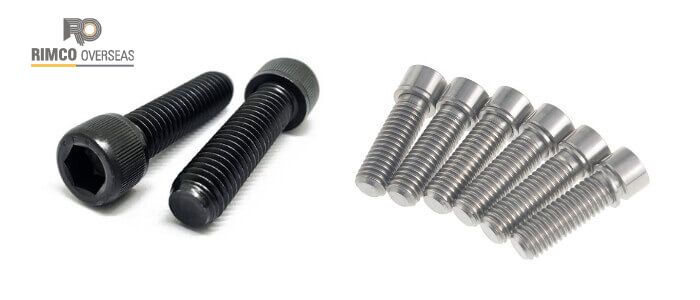

The "Allen" name is a generalization of a selected trademark of the Allen Manufacturing Company of Hartford, Connecticut, at present guaranteed by Apex Tool Group, LLC. Hex best screws/Allen Bolts meld a washer look under the head and a chamfered point, while a hex bolt does not have a washer go up against or chamfered strings. They are made of low-carbon steel and are remarkably essential being delivered or settle endeavors.

We are had with passing on an unparalleled level of Allen Cap Bolts. These things offered by us are made using pushed mechanical social gathering and inventive progress in adherence with the general quality models and measures. This range is acclaimed in the market for rendering reliable secures for a long time.

bolts-manufacturer-supplier-importer-exporter-stockholder

Allen Head Bolts Specifications

Material
Standards
Grades

Nickel Bolts Alloy Allen Bolts

ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472
UNS 2200 (Nickel Bolts 200) / UNS 2201 (Nickel Bolts 201), UNS 4400 (MONEL 400), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600) / UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Stainless Steel Allen Bolts
ASTM / ASME A/SA 193 / 194
B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4
Alloy Steel Allen Bolts
ASTM / ASME A/SA 193 / 194 GR
B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Duplex Steel Allen Bolts
UNS NO. S 31803, S 32205
Range: M10 TO M100, LENGTH UPTO 5 METERS
Nonmetallic Materials:
Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105
High-Temp Alloys
Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330
Copper Base Alloys
Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles
Aluminum Alloys
1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075
Trademarks
Carpenter, Armco, INCO, Cabot, DuPont.
Finish
Black Oxide, Zinc Plating, Hot Dip Galvanized



Other Standards Available

  • IS 1363 / 1364 / 2585 / 3138 / 3640 / 10238  Allen Bolts
  • DIN 931 / 933 / 960 / 961 / 7990 / 610 Allen Bolts
  • BS 1083 / 1768 Allen Bolts
  • ANSI B18.2.1 Allen Bolts
  • ASTM A307 Allen Bolts
  • IS 3757 / 6639 Allen Bolts
  • DIN 6914 / 6915 Allen Bolts
  • ISO 7412 Allen Bolts
  • ASTM A325M / A490M Allen Bolts
  • BS 1769 Allen Bolts

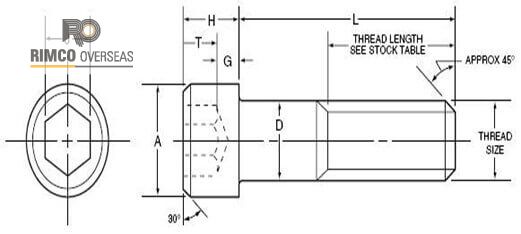

Allen Head Bolts Dimensions

bolts-manufacturer-supplier-importer-exporter-stockholder
Metric(d)
Thread Length(b)
Head diameter
Head high
Socket width
Socket Depth(t min.)
(dk max.)
(dk min.)
(k max.)
(k min.)
(s Nom.)
(s min.)
(s max.)
M 3
18,0
5,5
5,32
3,0
2,86
2,5
2,52
2,58
1,3
M 4
20,0
7,0
6,78
4,0
3,82
3,0
3,02
3,08
2,0
M 5
22,0
8,5
8,28
5,0
4,82
4,0
4,02
4,095
2,5
M 6
24,0
10,0
9,78
6,0
5,7
5,0
5,02
5,14
3,0
M 8
28,0
13,0
12,73
8,0
7,64
6,0
6,025
6,14
3,5
M 10
32,0
16,0
15,73
10,0
9,64
8,0
8,025
8,175
4,0
M 12
36,0
18,0
17,73
12,0
11,57
10,0
10,025
10,175
5,0
M 14
40,0
21,0
20,67
14,0
13,57
12,0
12,032
12,212
6,0
M 16
44,0
24,0
23,67
16,0
15,57
14,0
14,032
14,212
7,0
M 20
52,0
30,0
29,67
20,0
19,48
17,0
17,05
17,23
8,0
M 24
60,0
36,0
35,61
24,0
23,48
19,0
19,065
19,275
10,0
M 27
66,0
40,0
39,61
27,0
26,48
19,0
19,065
19,275
12,0
M 30
72,0
45,0
44,61
30,0
29,48
22,0
22,065
22,275
13,5



Allen Head Bolts Material & Grade

  •  304 Stainless Steel Allen Head Bolts
  •  304L Stainless Steel Allen Head Bolts
  •  904L Stainless Steel Allen Head Bolts
  •  17-4PH Stainless Steel Allen Head Bolts
  •  304H Stainless Steel Allen Head Bolts
  •  310 Stainless Steel Allen Head Bolts
  •  321 Stainless Steel Allen Head Bolts
  •  347 Stainless Steel Allen Head Bolts
  •  410 Stainless Steel Allen Head Bolts
  •  310S Stainless Steel Allen Head Bolts
  •  316 Stainless Steel Allen Head Bolts
  •  316H Stainless Steel Allen Head Bolts
  •  316L Stainless Steel Allen Head Bolts
  •  317 Stainless Steel Allen Head Bolts
  •  317L Stainless Steel Allen Head Bolts
  •  321H Stainless Steel Allen Head Bolts
  •  446 Stainless Steel Allen Head Bolts


Carbon Steel Allen Head Bolts

  • A307 Allen Head Bolts
  • A563 Allen Head Bolts


Alloy Steel Allen Head Bolts

  • A193 Allen Head Bolts
  • A320 Allen Head Bolts



Inconel Allen Head Bolts

  • Incoloy 925 Allen Head Bolts
  • Incoloy 825 Allen Head Bolts
  • Inconel 625 Allen Head Bolts
  • Inconel 601 Allen Head Bolts
  • Inconel 602 Allen Head Bolts
  • Inconel 603 Allen Head Bolts
  • Incoloy 800 Allen Head Bolts
  • Incoloy 800H Allen Head Bolts
  • Inconel 600 Allen Head Bolts
  • Inconel 686 Allen Head Bolts


Monel Allen Head Bolts

  • Monel K-500 Allen Head Bolts
  • Monel 400 Allen Head Bolts


Hastelloy Allen Head Bolts

  • Hastelloy C22 Allen Head Bolts
  • Hastelloy C276 Allen Head Bolts


Titanium Allen Head Bolts

  • Titanium Grade 5 Allen Head Bolts
  • Titanium Grade 2 Allen Head Bolts



Allen Head Bolts As Per ASTM Specification

  • ASTM A193 Allen Head Bolts
  • ASTM A307 Allen Head Bolts
  • ASTM A320 Allen Head Bolts
  • ASTM A325 Allen Head Bolts
  • ASTM A354 Allen Head Bolts
  • ASTM A449 Allen Head Bolts
  • ASTM A490 Allen Head Bolts
  • ASTM F593 Allen Head Bolts
  • ASTM F1554 Allen Head Bolts
  • ASTM F3125 Allen Head Bolts



Allen Head Bolts As Per DIN Specification

  • DIN 6921 Allen Head Bolts
  • DIN 603 Allen Head Bolts
  • DIN 2510 Allen Head Bolts
  • DIN 580 Allen Head Bolts
  • DIN 582 Allen Head Bolts
  • DIN 444 Allen Head Bolts
  • DIN 939 Allen Head Bolts
  • DIN 933 Allen Head Bolts
  • DIN 931 Allen Head Bolts
  • DIN 976 Allen Head Bolts
  • DIN 912 Allen Head Bolts
  • DIN 6325 Allen Head Bolts
  • DIN 6914 Allen Head Bolts
  • DIN 3570 Allen Head Bolts
  • DIN 7990 Allen Head Bolts
  • DIN 1B Allen Head Bolts
  • DIN 529 Allen Head Bolts
