J-bolts are J-bound screws with machine strings for use with a nut. They are typical for nuclear family and mechanical applications and each screw keeps running with a furnished hex nut. They are made using steel wire and all around foreseen home and farm applications.

The Rimco Overseas stocks an imperative supply of locks for business, current, utility, and OEM foundations. We have Fasteners, for instance, screws, J Bolt , locks, nuts, washers, and studs open in a few examinations and materials. Near to the standard secures we expansion stock B7 bolts and studs and treated steel, nuts, J Bolt, screws, and washers. We furthermore pass on an expansive stack of mechanical stays, for instance, drop-ins, wedge gets, tap cons, lead, plastic, and void divider catches.

Rimco Overseas is a full line get distributer that stocks a wide arrangement of things. Regardless of what the express, we can find what you're pursuing down. In case it's not on our racks we will re-suitable the thing to ensure our customers' satisfaction. With Rimco Overseas, there is no action to wide or little. We consider any jolt require.

Rimco Overseas is a tremendous organisation in the jolt business who handles the necessities of any customer. For progress, we offer J Bolt to most of the fields with a shocking obsession in electrical, mechanical, and steel erection brief laborers. We have a wide load of J Bolt , quality sinks the a great deal of our dispersal focuses, giving fields, for instance, get, catches, channel and swagger embellishments. Rimco Overseas has made itself as the market pioneer and is seen for phenomenal affiliation, positive transport, forcefulness, and total procedures.

bolts-j-manufacturer-supplier-importer-exporter-stockholder

What is a J Bolts

A J stagger is a J-framed paralyze which can be used in a grouping of organizations. Diverse gear and building suppliers stock J screws, and it is furthermore possible to design custom sizes unequivocally from creators of screws and appending things. These paralyzes can be passed on utilizing a couple of undeniable metals, and acquainted with various arrangements, subordinate upon how and where they will be utilized. It might be useful to keep a couple around the house for various endeavors, because of people who finish a lot of do-it-without anybody's assistance work.

In a J shock, the threading continues running along the estimation arm of the J. One could consider a J shoot as a tremendous segment of a U surge, since that is essentially what it is. The broadness of the stagger can be changed, as can the sort of threading, and the point and size of the catch at the base of the paralyze. Makers can in like way consider express requests because of increasingly vital asking. To join something to a J snare, hung nuts and washers can be utilized as required.

J Bolts-Galvanized

J Bolts are Hot Dip Galvanized and kept running with a since a long time back hung length. Our J Bolts keep running with the sensible locks, nuts and washers (level). Our J Bolts come in 3/8 inch remove transversely over with a 5/8 inch width. J Bolts are exceptional for anchors pipe, affiliation, channel, etc and other media transmission tower pipe, recieving wire or gear. Lengths are 8 creeps with string lengths being 6 inches.

J Bolts Specification

Material
Standards
Grades

Nickel Bolts Alloy J-Bolts

ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472
UNS 2200 (Nickel Bolts 200) / UNS 2201 (Nickel Bolts 201), UNS 4400 (MONEL 400), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600) / UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Stainless Steel J-Bolts
ASTM / ASME A/SA 193 / 194
B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4
Alloy Steel J-Bolts
ASTM / ASME A/SA 193 / 194 GR
B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Duplex Steel J-Bolts
UNS NO. S 31803, S 32205
Range: M10 TO M100, LENGTH UPTO 5 METERS
Nonmetallic Materials:
Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105
High-Temp Alloys
Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330
Copper Base Alloys
Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles
Aluminum Alloys:
1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075
Trademarks:
Carpenter, Armco, INCO, Cabot, DuPont.
Finish:
Black Oxide, Zinc Plating, Hot Dip Galvanized



Other Standard Available

  • IS 1363 / 1364 / 2585 / 3138 / 3640 / 10238  J-Bolts
  • DIN 931 / 933 / 960 / 961 / 7990 / 610 J-Bolts
  • BS 1083 / 1768 J-Bolts
  • ANSI B18.2.1 J-Bolts
  • ASTM A307 J-Bolts
  • IS 3757 / 6639 J-Bolts
  • DIN 6914 / 6915 J-Bolts
  • ISO 7412 J-Bolts
  • ASTM A325M / A490M J-Bolts
  • BS 1769 J-Bolts

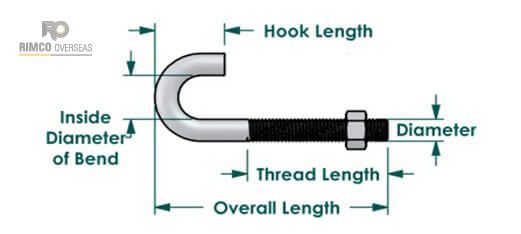

J Bolts Dimensions

bolts-j-manufacturer-supplier-importer-exporter-stockholder-dimensional



Size

(A x B)

Inside Hook Diameter

(C)

Thread Length

(D)

8-32
x
1-7/8
5/16
1-1/4
10-24
x
2-1/8
3/8
1-1/4
1/4-20
x
2-5/16
7/16
1-1/2
1/4-20
x
4
1/2
2
1/4-20
x
6
5/8
2-1/2
5/16-18
x
3
1/2
2
5/16-18
x
5
5/8
2-1/2
5/16-18
x
7
5/8
3-7/8
3/8-16
x
3-3/4
5/8
2-1/4
3/8-16
x
5
5/8
2-1/4
3/8-16
x
7
5/8
2-1/4
1/2-13
x
6
1
3



J Bolts Material & Grade

  •  304 Stainless Steel J Bolts
  •  304L Stainless Steel J Bolts
  •  904L Stainless Steel J Bolts
  •  17-4PH Stainless Steel J Bolts
  •  304H Stainless Steel J Bolts
  •  310 Stainless Steel J Bolts
  •  321 Stainless Steel J Bolts
  •  347 Stainless Steel J Bolts
  •  410 Stainless Steel J Bolts
  •  310S Stainless Steel J Bolts
  •  316 Stainless Steel J Bolts
  •  316H Stainless Steel J Bolts
  •  316L Stainless Steel J Bolts
  •  317 Stainless Steel J Bolts
  •  317L Stainless Steel J Bolts
  •  321H Stainless Steel J Bolts
  •  446 Stainless Steel J Bolts


Carbon Steel J Bolts

  • A307 J Bolts
  • A563 J Bolts


Alloy Steel J Bolts

  • A193 J Bolts
  • A320 J Bolts



Inconel J Bolts

  • Incoloy 925 J Bolts
  • Incoloy 825 J Bolts
  • Inconel 625 J Bolts
  • Inconel 601 J Bolts
  • Inconel 602 J Bolts
  • Inconel 603 J Bolts
  • Incoloy 800 J Bolts
  • Incoloy 800H J Bolts
  • Inconel 600 J Bolts
  • Inconel 686 J Bolts


Monel J Bolts

  • Monel K-500 J Bolts
  • Monel 400 J Bolts


Hastelloy J Bolts

  • Hastelloy C22 J Bolts
  • Hastelloy C276 J Bolts


Titanium J Bolts

  • Titanium Grade 5 J Bolts
  • Titanium Grade 2 J Bolts



J Bolts As Per ASTM Specification

  • ASTM A193 J Bolts
  • ASTM A307 J Bolts
  • ASTM A320 J Bolts
  • ASTM A325 J Bolts
  • ASTM A354 J Bolts
  • ASTM A449 J Bolts
  • ASTM A490 J Bolts
  • ASTM F593 J Bolts
  • ASTM F1554 J Bolts
  • ASTM F3125 J Bolts



J Bolts As Per DIN Specification

  • DIN 6921 J Bolts
  • DIN 603 J Bolts
  • DIN 2510 J Bolts
  • DIN 580 J Bolts
  • DIN 582 J Bolts
  • DIN 444 J Bolts
  • DIN 939 J Bolts
  • DIN 933 J Bolts
  • DIN 931 J Bolts
  • DIN 976 J Bolts
  • DIN 912 J Bolts
  • DIN 6325 J Bolts
  • DIN 6914 J Bolts
  • DIN 3570 J Bolts
  • DIN 7990 J Bolts
  • DIN 1B J Bolts
  • DIN 529 J Bolts
