Carriage Bolts

Carriage Bolts

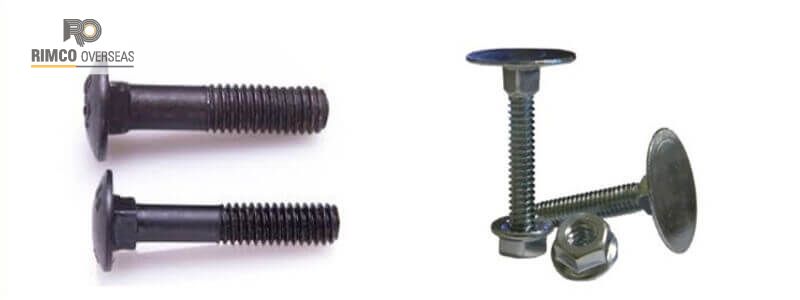

Carriage Bolts are round headed screws with an umbrella sort bend used for essential applications. A Carriage Bolt has a square shoulder under a tolerable estimation head which renounces turning when the nut is settled or removed. They are beneficial for wood-to-wood affiliations when the head may not be accessible for tightening.Rimco Overseas Manufactures carriage snares as per ASTM A307 and DIN 603 Standard in Stainless Steel, survey 8, Brass.

carriage-bolts-manufacturer-supplier-importer-exporter-stockholder

Carriage Bolts Specification

Material
Standards
Grades

Nickel Bolts Alloy Carriage Bolts

ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472
UNS 2200 (Nickel Bolts 200) / UNS 2201 (Nickel Bolts 201), UNS 4400 (MONEL 400), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600) / UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Stainless Steel Carriage Bolts
ASTM / ASME A/SA 193 / 194
B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4
Alloy Steel Carriage Bolts
ASTM / ASME A/SA 193 / 194 GR
B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Duplex Steel Carriage Bolts
UNS NO. S 31803, S 32205
Range: M10 TO M100, LENGTH UPTO 5 METERS
Nonmetallic Materials:
Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105
High-Temp Alloys
Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330
Copper Base Alloys
Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles
Aluminum Alloys:
1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075
Trademarks:
Carpenter, Armco, INCO, Cabot, DuPont.
Finish:
Black Oxide, Zinc Plating, Hot Dip Galvanized

ASTM Specifications for Carriage Bolts

  • IS 1363 / 1364 / 2585 / 3138 / 3640 / 10238  Carriage Bolts
  • DIN 931 / 933 / 960 / 961 / 7990 / 610 Carriage Bolts
  • BS 1083 / 1768 Carriage Bolts
  • ANSI B18.2.1 Carriage Bolts
  • ASTM A307 Carriage Bolts
  • IS 3757 / 6639 Carriage Bolts
  • DIN 6914 / 6915 Carriage Bolts
  • ISO 7412 Carriage Bolts
  • ASTM A325M / A490M Carriage Bolts
  • BS 1769 Carriage Bolts

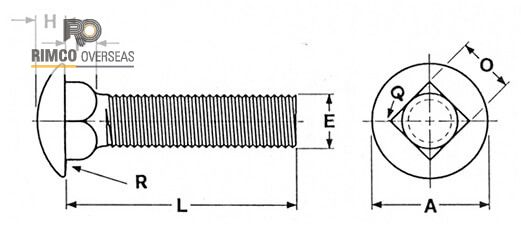

Carriage Bolts Dimensions

  • SAE Grade 2, ASTM A307
  • SAE J429 Grade 5, ASTM A449
  • Plain = CB020——-
  • Plain = CB050——-
  • Zinc = CB020——-Z1
  • Zinc = CB050——-Z1



carriage-bolts-manufacturer-supplier-importer-exporter-stockholder-dimensional
Carriage Diameter
D
C
H
F
P
Body Diameter
Head Diameter
Head Height
Square Width
Square Depth
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
3/8
0.388
0.360
0.844
0.782
0.208
0.188
0.388
0.368
0.219
0.188
1/2
0.515
0.483
1.094
1.032
0.270
0.250
0.515
0.492
0.281
0.250
5/8
0.642
0.605
1.344
1.219
0.344
0.313
0.642
0.616
0.344
0.313
3/4
0.768
0.729
1.594
1.469
0.406
0.375
0.768
0.741
0.406
0.375
7/8
0.895
0.852
1.844
1.719
0.469
0.438
0.895
0.865
0.469
0.438
1
1.022
0.976
2.094
1.969
0.531
0.500
1.022
0.990
0.531
0.500
1-1/4
1.277
2.850
0.531
0.500
1.250
0.625



Carriage Bolts Material & Grade

  •  304 Stainless Steel Carriage Bolts
  •  304L Stainless Steel Carriage Bolts
  •  904L Stainless Steel Carriage Bolts
  •  17-4PH Stainless Steel Carriage Bolts
  •  304H Stainless Steel Carriage Bolts
  •  310 Stainless Steel Carriage Bolts
  •  321 Stainless Steel Carriage Bolts
  •  347 Stainless Steel Carriage Bolts
  •  410 Stainless Steel Carriage Bolts
  •  310S Stainless Steel Carriage Bolts
  •  316 Stainless Steel Carriage Bolts
  •  316H Stainless Steel Carriage Bolts
  •  316L Stainless Steel Carriage Bolts
  •  317 Stainless Steel Carriage Bolts
  •  317L Stainless Steel Carriage Bolts
  •  321H Stainless Steel Carriage Bolts
  •  446 Stainless Steel Carriage Bolts


Carbon Steel Carriage Bolts

  • A307 Carriage Bolts
  • A563 Carriage Bolts


Alloy Steel Carriage Bolts

  • A193 Carriage Bolts
  • A320 Carriage Bolts



Inconel Carriage Bolts

  • Incoloy 925 Carriage Bolts
  • Incoloy 825 Carriage Bolts
  • Inconel 625 Carriage Bolts
  • Inconel 601 Carriage Bolts
  • Inconel 602 Carriage Bolts
  • Inconel 603 Carriage Bolts
  • Incoloy 800 Carriage Bolts
  • Incoloy 800H Carriage Bolts
  • Inconel 600 Carriage Bolts
  • Inconel 686 Carriage Bolts


Monel Carriage Bolts

  • Monel K-500 Carriage Bolts
  • Monel 400 Carriage Bolts


Hastelloy Carriage Bolts

  • Hastelloy C22 Carriage Bolts
  • Hastelloy C276 Carriage Bolts


Titanium Carriage Bolts

  • Titanium Grade 5 Carriage Bolts
  • Titanium Grade 2 Carriage Bolts



Carriage Bolts As Per ASTM Specification

  • ASTM A193 Carriage Bolts
  • ASTM A307 Carriage Bolts
  • ASTM A320 Carriage Bolts
  • ASTM A325 Carriage Bolts
  • ASTM A354 Carriage Bolts
  • ASTM A449 Carriage Bolts
  • ASTM A490 Carriage Bolts
  • ASTM F593 Carriage Bolts
  • ASTM F1554 Carriage Bolts
  • ASTM F3125 Carriage Bolts



Carriage Bolts As Per DIN Specification

  • DIN 6921 Carriage Bolts
  • DIN 603 Carriage Bolts
  • DIN 2510 Carriage Bolts
  • DIN 580 Carriage Bolts
  • DIN 582 Carriage Bolts
  • DIN 444 Carriage Bolts
  • DIN 939 Carriage Bolts
  • DIN 933 Carriage Bolts
  • DIN 931 Carriage Bolts
  • DIN 976 Carriage Bolts
  • DIN 912 Carriage Bolts
  • DIN 6325 Carriage Bolts
  • DIN 6914 Carriage Bolts
  • DIN 3570 Carriage Bolts
  • DIN 7990 Carriage Bolts
  • DIN 1B Carriage Bolts
  • DIN 529 Carriage Bolts
