Shoulder Bolts
Shoulder Bolts Manufacturers, Shoulder Bolts Suppliers, Shoulder Bolts Exporters, Shoulder Bolts Importers, Shoulder Bolts Distributors, Shoulder Bolts Stockists, Shoulder Bolts Traders, Shoulder Bolts Dealers. Authorized Manufacturers of Shoulder Bolts, Authorized Suppliers of Shoulder Bolts, Authorized Distributors of Shoulder Bolts, Authorized Importers of Shoulder Bolts, Authorized Stockist of Shoulder Bolts, Authorized Dealers of Shoulder Bolts, Authorized traders of Shoulder Bolts, Authorized Exporters of Shoulder Bolts. Shoulder Bolts manufacturers & suppliers in india, Carbon Steel/ Alloy Steel/ Stainless Steel Shoulder Bolts manufacturers in india, Shoulder Bolts Manufacturers in Mumbai , Shoulder Bolts Suppliers in Mumbai, Shoulder Bolts Exporters in Mumbai, Shoulder Bolts Importers in Mumbai, Shoulder Bolts Distributors in Mumbai, Shoulder Bolts Stockist in Mumbai s, Shoulder Bolts Traders in Mumbai, Shoulder Bolts Dealers in Mumbai. Authorized Manufacturers of Shoulder Bolts in Mumbai, Authorized Suppliers of Shoulder Bolts in Mumbai, Authorized Distributors of Shoulder Bolts in Mumbai, Authorized Importers of Shoulder Bolts in Mumbai, Authorized Stockist of Shoulder Bolts in Mumbai, Authorized Dealers of Shoulder Bolts in Mumbai, Authorized traders of Shoulder Bolts in Mumbai, Authorized Exporters of Shoulder Bolts in Mumbai. ISO 9001:2008 Certified Manufacturer & Suppliers SS Shoulder Bolts, Shoulder Bolts manufacturer, Shoulder Bolts supplier, Shoulder Bolts producer, self drilling anchor Shoulder Bolts bolt, Zinc Alloy Shoulder Bolts bolt, Heavy duty Shoulder Bolts bolt, Lock Shoulder Bolts Bolt, Brass plated Shoulder Bolts bolt, Shoulder Bolts Manufacturers in India, Shoulder Bolts Suppliers in India, Shoulder Bolts Exporters in India, Shoulder Bolts Importers in India, Shoulder Bolts Distributors in India, Shoulder Bolts Stockist in India, Shoulder Bolts Traders in India, Shoulder Bolts Dealers in India. Authorized Manufacturers of Shoulder Bolts in India, Authorized Suppliers of Shoulder Bolts in India, Authorized Distributors of Shoulder Bolts in India, Authorized Importers of Shoulder Bolts in India, Authorized Stockist of Shoulder Bolts in India, Authorized Dealers of Shoulder Bolts in India, Authorized traders of Shoulder Bolts in India, Authorized Exporters of Shoulder Bolts in India. One of the India’s leading manufacturer of Silicon Bronze 655 Shoulder Bolts, Silicon Bronze 651 Shoulder Bolts,Titanium Grade 5 Shoulder Bolts, Titanium Grade 2 Shoulder Bolts, Duplex 2205 Shoulder Bolts,Ferralium 255 Shoulder Bolts, Super Duplex S32760 Shoulder Bolts, Duplex 2507 Shoulder Bolts, Ferralium 255 FG46 Shoulder Bolts, Duplex S31803 Shoulder Bolts, 904L Stainless Steel Shoulder Bolts, 304 Stainless Steel Shoulder Bolts, 304H Stainless Steel Shoulder Bolts, 304L Stainless Steel Shoulder Bolts,310 Stainless Steel Shoulder Bolts, 316 Stainless Steel Shoulder Bolts, 316L Stainless Steel Shoulder Bolts, 317L Stainless Steel Shoulder Bolts, 321 Stainless Steel Shoulder Bolts,347 Stainless Steel Shoulder Bolts,Compare Shoulder Bolts Price in china & india
Custom producer of shoulder fasteners and screws. Permits rotational development of the mounted segment. Different kinds of screws incorporate machine, hostage, shaping, set, string cutting, and sheet metal screws. Accompanies distinctive heads and drives. Appropriate for car, aviation, buyer items and mechanical applications. Surge administrations advertised.

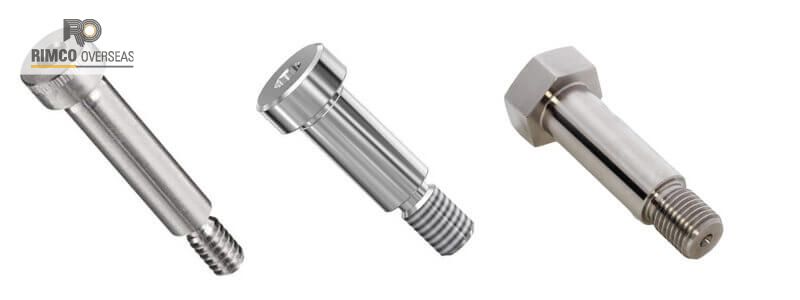

We produce and supply a wide grouping of Shoulder Bolt. For the creation of this scope of item, we utilize ideal quality crude material that is obtained from the guaranteed sellers of the market. This range is exceedingly appreciated by customers because of its remarkable highlights like dimensional precision, simple establishment, impeccable completion, erosion and climate opposition, high rigidity and hoisted solidness. Accessible in various sizes and completes that splendidly meet customers' correct needs, we give these bolts at moderate costs.
Shoulder Bolts Specification
| Shoulder Bolt Features | Shoulder Bolt Sizes | Shoulder Bolt Materials |
|---|---|---|
|
Shoulder bolts have a cylindrical shoulder under the head that act like an axle or shaft, allowing moving parts to rotate around or slide along its length. |
1/4″ – 4″ M25 – M100 |
Specialty Metals
|

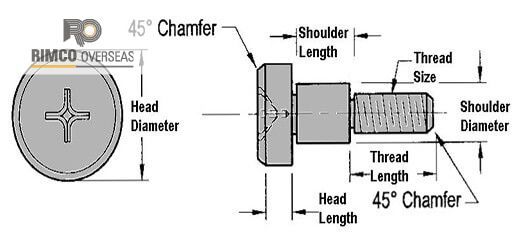

Shoulder Bolt dimensions
| Nom Size |
D | A | H | C | J | T | M | R | K | F | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shoulder Diameter |
Head Diameter |
Head Height |
Chamfer or Radius |
Hex Socket Size |
Key Engage- ment |
Fillet Transition Diameter |
Head Fillet Radius |
Shoulder Neck Diameter |
Shoulder Neck Width |
||||
| Max | Min | Max | Min | Max | Min | Min | Nom | Min | Max | Min | Min | Max | |
| 1/4 | .2480 | .2460 | .375 | .357 | .188 | .177 | .020 | 1/8 | .094 | .276 | .009 | .227 | .093 |
| 5/16 | .3105 | .3085 | .438 | .419 | .219 | .209 | .026 | 5/32 | .117 | .345 | .012 | .289 | .093 |
| 3/8 | .3730 | .3710 | .562 | .543 | .250 | .240 | .031 | 3/16 | .141 | .413 | .015 | .352 | .093 |
| 1/2 | .4980 | .4960 | .750 | .729 | .312 | .302 | .040 | 1/4 | .188 | .550 | .020 | .477 | .093 |
| 5/8 | .6230 | .6210 | .875 | .853 | .375 | .365 | .050 | 5/16 | .234 | .687 | .024 | .602 | .093 |
| 3/4 | .7480 | .7460 | 1.000 | .977 | .500 | .490 | .069 | 3/8 | .281 | .826 | .030 | .727 | .093 |
| Nominal Size |
D1 | Threads Per Inch |
G | I | N | *E | Thread Section Tensile Strength (Lbs) |
Single Shear Strength (Lbs) |
Seating Torque (Inch Lbs) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Thread Size |
Thread Neck Diameter |
Thread Neck Width |
Thread Neck Fillet |
Thread Length |
Shoulder | Thread Neck | ||||||
| Max | Min | Max | Min | Basic | Min | Min | Min | |||||
| 1/4 | 10 | 24 | .142 | .033 | .083 | .023 | .017 | .375 | 2,540 | 4,515 | 1,250 | 50 |
| 5/16 | 1/4 | 20 | .193 | .182 | .100 | .028 | .022 | .438 | 4,610 | 7,100 | 2,340 | 125 |
| 3/8 | 5/16 | 18 | .249 | .237 | .111 | .031 | .025 | .500 | 7,600 | 10,280 | 3,970 | 265 |
| 1/2 | 3/8 | 16 | .304 | .291 | .125 | .035 | .029 | .625 | 11,240 | 18,350 | 5,985 | 470 |
| 5/8 | 1/2 | 13 | .414 | .397 | .154 | .042 | .036 | .750 | 20,570 | 28,785 | 11,140 | 1,150 |
| 3/4 | 5/8 | 11 | .521 | .502 | .182 | .051 | .045 | .875 | 32,770 | 41,515 | 17,800 | 2,000 |
| * Tolerance = 3/8" and smaller = -.020, Greater than 3/8" -.030 | ||||||||||||
Shoulder Bolts Material & Grade
|
|
Carbon Steel Shoulder Bolts
|
|
Alloy Steel Shoulder Bolts
|
|
Inconel Shoulder Bolts
|
|
Monel Shoulder Bolts
|
|
Hastelloy Shoulder Bolts
|
|
Titanium Shoulder Bolts
|
|
Shoulder BOLTS As Per ASTM Specification
|
|
Shoulder Bolts As Per DIN Specification
|
|
COATINGS
