Aluminium Bronze Bolts

Aluminium Bronze Bolts

Rimco Overseas is one of the outstanding stockist, producers and providers of ALLUMINIUM BRONZE FASTENERS, which are utilized for their mix of high quality, amazing erosion and wear obstruction. Nickel aluminum bronze incorporates non-vacuum mode cast and vacuum mode cast on the base of arrangement, which speak to 48% and 21% of worldwide nickel aluminum bronze market. Aluminum bronze is a kind of bronze in which aluminum is the primary alloying metal added to copper, as opposed to standard bronze (copper and tin) or metal (copper and zinc).Aluminum Bronze has solid properties of solidarity and consumption opposition because of its high aluminum and iron substance. Aluminum bronze compounds commonly contain 9-12% aluminum and up to 6% iron and nickel. Marine, Industrial and plumbing are the fundamental utilization of Nickel Aluminum Bronze Fasteners and is the biggest nickel aluminum bronze market on creation and consumption.

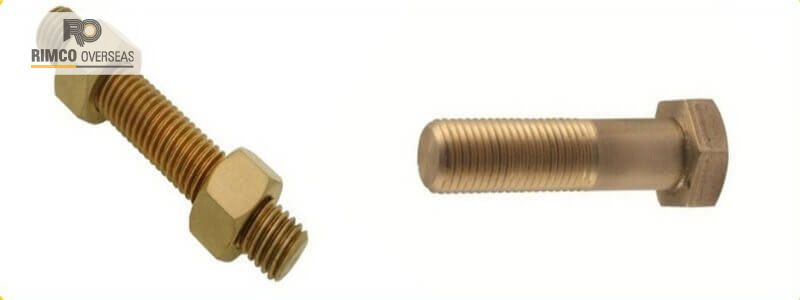

aluminium-bronze-manufacturer-importer-exporter-supplier-stockholder

A assortment of aluminum bronzes of contrasting arrangements have discovered mechanical use, with most running from 5% to 11% aluminum by weight, the staying mass being copper; other alloying specialists, for example, press, nickel, manganese, and silicon are additionally now and again added to aluminum bronzes. Aluminum related to iron and nickel in C955 goes about as a strengthener in these combinations. These composites are discolor safe and show low rates of erosion in air conditions, low oxidation rates at high temperatures, and low reactivity with sulfurous mixes and other fumes results of ignition. We additionally offer the equivalent in various sorts, for example, ALLUMINIUM BRONZE BOLTS, ALLUMINIUM BRONZE NUTS, ALLUMINIUM BRONZE WASHERS, and ALLUMNIUM BRONZE STUD BOLTS. In the interim purchase ALLUMINIUM BRONZE FASTENERS at sensible rates from us.

Chemical Composition of Aluminium Bronze Bolts

Cu% Sn% Pb% Zn% Fe% Ni% Sb% P% S% AI% Mn% Si%
83.00 Min N/A N/A N/A 3.00-
5.00
1.5 N/A N/A N/A 10.00-
11.50
0.50 N/A



Physical Properties of Aluminium Bronze Bolts

Physical - Aluminum Bronze
  US Customary Metric
Melting Point-Liquidus 1900 F 1038 C
Melting Point-Solidus 1880 F 1027 C
Density 0.269 lb/in3
@ 68 F
7.45 gm/cm3
@ 20 C
Specific Gravity 7.450 7.45
Electrical Resistivity 80.20 ohms-cmil/ft
@ 68 F
13.33 microhm-cm
@ 20 C
Electrical Conductivity 130 %IACS
@ 68 F
0.075 MegaSiemens/
cm @ 20 C
Thermal Conductivity 33.90 Btu ft/
(hr ft2 oF) @ 68 F
58.7 W/m oK @ 20 C
Coefficient of
Thermal Expansion
90 10-6 per oF
(68-572 F)
16.2 10-6 per oC
(20-300 C)
Specific Heat Capacity 0.10 Btu/lb/oF
@ 68 F
419.0 J/kg oK
@ 293 K
Modulus of Elasticity
in Tension
15500 ksi 107000 MPa
Magnetic Permeability* 1.270 1.27
*Field Strength 16 kA/m

Mechanical Properties of Aluminium Bronze Bolts

Mechanical - Aluminum Bronze
Tensile Strength, min 85 ksi 586 MPa
Yield Strength @ .5% ext under load min 32 ksi 221 MPa
Elongation in 2 in. or 50 mm min, % 12
Brinell Hardness, min 170 typical Bhn (3000kg)
Machinability Rating 60%



Characteristics of Aluminium Bronze Bolts

»   High tensile strength and Resistance
»   Non-magnetic
»   Resistant to Tarnish
»   Low oxidation rates at high temperatures
»   Low reactivity to sulfurous compounds and other products of combustion
»   The anti-corrosive properties of some of these alloys can be further enhanced by heat treatment.



Applications of Aluminium Bronze Bolts

»   General sea water-related service
»   Water Supply
»   Oil and petrochemical industries
»   Specialised anti-corrosive applications
»   Certain structural retrofit building applications
