Alloy Steel 4140 Bolts

Alloy Steel 4140 Bolts

Alloy Steel 4140, additionally sold under the name AISI/SAE 4140, is a low Alloy steel that contains chromium, molybdenum, and manganese. Known for its effect and scraped area opposition, Alloy Steel 4140 additionally offers clients extraordinary weariness and torsional quality. Welding is conceivable through most famous systems, and it has an abnormal state of flexibility. Machinability is conceivable in the strengthened condition, while Alloy Steel 4140 takes cold working, warming, and extinguishing great.

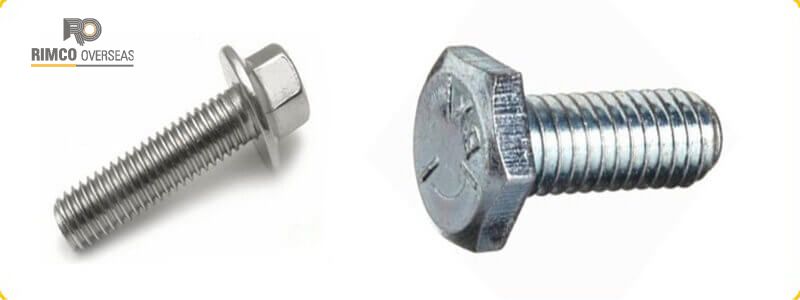

alloy-steel-4140-manufacturer-importer-exporter-supplier-stockholder

We offer premium quality Alloy Steel Bolts of Grade 4140 including AISI 4140 Bolts, AISI 4140 Screws, AISI 4140 Nuts, AISI 4140 Washers and different clasp regarding different International standard and particulars. Alloy steel 4140 clasp are framed utilizing cold manufacturing strategies, in any case, huge size latches or little amounts of 4140 jolts are delivered by hot fashioning or straightforwardly machined from 4140 bar stock. We supply AISI 4140 Steel Fasteners that have a steady mix of high quality, durability, weldability, and machinability alongside exhaustion quality. Call us today to ask for a free statement or to talk with our business work force in regards to our quality AISI 4140 Fastener items!



Alloy Steel 4140 Bolts Specifications

Material Alloy Steel 4140 Bolts
Standard DIN, ASTM, BS and all International Standards
Length 3 mm to B6 mm
Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Type Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts.

Availability of Alloy Steel AISI 4140 Fasteners

Alloy Steel AISI 4140 Structural Bolts AISI 4140 Alloy Marine Anchor Bolt
UNS G41400 Hexagon Nut Alloy Steel AISI 4140 Hex Nut
AISI 4140 Steel Hex Coupling Nut Alloy Steel AISI 4140 Hex Domed Cap Nuts
Steel AISI 4140 Nuts UNS G41400 Screws
Alloy AISI 4140 Sockets AISI 4140 Steel Studs
AISI 4140 Alloy Steel Hex Head Bolts Alloy Hex AISI 4140 Set Screw
Alloy AISI 4140 Square Nut UNS G41400 Stud Bolts
AISI 4140 Alloy Machine Screw Steel AISI 4140 Socket Head Cap Screw
Alloy SteelAISI 4140 Allen Cap screw UNS G41400 Pan Head Screw
AISI 4140 Steel Wing Screw AISI 4140 Alloy Steel Washers
UNS G41400 Spring Washers Steel AISI 4140 Anchor Bolt
UNS G41400 Spring Washers Steel AISI 4140 Anchor Bolt
UNS G41400 Spring Washers Steel AISI 4140 Anchor Bolt
UNS G41400 Spring Washers Steel AISI 4140 Anchor Bolt
UNS G41400 Spring Washers Steel AISI 4140 Anchor Bolt
AISI 4140 Alloy Socket Hexagon Head Screw Anchor Bolt Alloy Steel AISI 4140 U- Bolts
AISI 4140 Steel J Bolts Alloy Mushroom Head Square Neck Bolts
AISI 4140 Alloy Steel T-Head Bolts Steel AISI 4140 Wing Screw
UNS G41400 Eye Bolt Alloy AISI 4140 Foundation Bolts



Chemical Compositions of Alloy Steel 4140 Bolts

Element Content (%)
Chromium, Cr 0.80 - 1.10
Manganese, Mn 0.75 - 1.0
Carbon, C 0.380 - 0.430
Silicon, Si 0.15 - 0.30
Molybdenum, Mo 0.15 - 0.25
Sulfur, S 0.040
Phosphorous, P 0.035
Iron, Fe Balance



Physical Properties of Alloy Steel 4140 Bolts

Properties Metric Imperial
Density 7.85 g/cm3 0.284 lb/in³
Melting point 1416°C 2580°F

Mechanical Properties of Alloy Steel 4140 Bolts

Properties Metric Imperial
Tensile strength 655 MPa 95000 psi
Yield strength 415 MPa 60200 psi
Bulk modulus (typical for steel) 140 GPa 20300 ksi
Shear modulus (typical for steel) 80 GPa 11600 ksi
Elastic modulus 190-210 GPa 27557-30458 ksi
Poisson's ratio 0.27-0.30 0.27-0.30
Elongation at break (in 50 mm) 25.70% 25.70%
Hardness, Brinell 197 197
Hardness, Knoop (converted from Brinell hardness) 219 219
Hardness, Rockwell B (converted from Brinell hardness) 92 92
Hardness, Rockwell C (converted from Brinell hardness. Value below normal HRC range, for comparison purposes only) 13 13
Hardness, Vickers (converted from Brinell hardness) 207 207
Machinability (based on AISI 1212 as 100 machinability) 65 65



Types of Alloy Steel 4140 Bolts

Alloy Steel 4140 Hex Head Bolt Alloy Steel 4140 Hex Head Bolts
Alloy Steel 4140 Square Bolt Alloy Steel 4140Square Bolts
Alloy Steel 4140 U Bolt Alloy Steel 4140 U Bolts
Alloy Steel 4140 Chrome Moly U Bolt
Alloy Steel 4140 U Bolt
Alloy Steel 4140 Eye Bolt Alloy Steel 4140 Eye Bolt
Alloy Steel 4140 Chrome Moly Eye Bolts
Alloy Steel 4140 Eye Bolt
Alloy Steel 4140 T Bolt Alloy Steel 4140 T Bolt
Alloy Steel 4140 Chrome Moly T Bolts
Alloy Steel 4140 T Bolt
Alloy Steel 4140 Hex Bolt Alloy Steel 4140 Hex Bolt
Alloy Steel 4140 Chrome Moly Hex Bolts
B6 Alloy Steel 4140 Hex Bolt
Alloy Steel 4140 Lag Bolt Alloy Steel 4140 Lag Bolts
Alloy Steel 4140 AS Lag Bolt
Alloy Steel 4140 Lag Bolt
Alloy Steel 4140 Counter sunk Bolt Alloy Steel 4140 Counter sunk Bolt
Alloy Steel 4140 Chrome Moly Counter sunk Bolts
Alloy Steel 4140 Counter sunk Bolt



Other Grades of Alloy Steel 4140 Bolts

  • Alloy Steel B6 Bolts
  • Alloy Steel B7 Bolts
  • Alloy Steel B7M Bolts
  • Alloy Steel B16 Bolts
  • Alloy Steel 2 Bolts
  • Alloy Steel 2HM Bolts
  • Alloy Steel 2H Bolts
  • Alloy Steel GR 6 Bolts
  • Alloy Steel GR 7 Bolts
  • Alloy Steel GR 7M Bolts
