Nickel Bolts 201

Nickel Bolts 201

Rimco Overseas is one of the settled merchant and stockiest of value Nickel Alloy 201 (Bolts/Nuts), where toughening ought to be performed in a lessening air to hold splendid completions. These Nickel 201 Hex Head Bolts has been discovered that 0.25 % dampness in hydrogen chloride did not influence consumption rate in both wet and dry gas at 400 Degree F (205 Degree C). Strengthening of our Nickel 201 Hex Head Nuts for times of 1 hour or more at temperatures over 1700 Degree F (925 Degree C) will result in hardness. Warmth treatment for these Nickel 201 Square Bolts, normally called a dead – delicate toughen, is utilized just in particular applications, for example, burst stomachs on account of the low mechanical properties and coarse grain structure delivered.

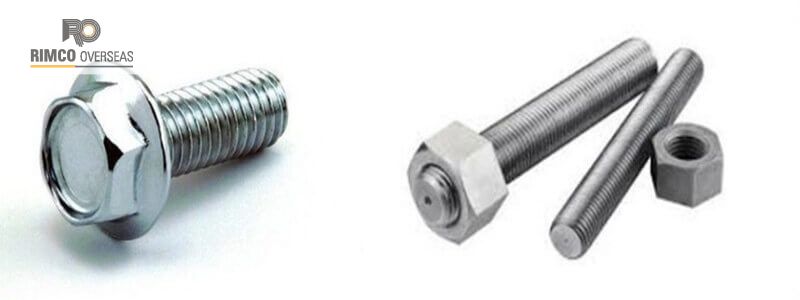

nickel-201-manufacturer-importer-exporter-supplier-stockholder

Dry hydrogen and separated alkali are favored for our Nickel 201 hex bolts, however more affordable airs like mostly consumed flammable gas will likewise give satisfactory brilliance. Warming in oxidizing airs for these Nickel 201 Eye Bolts at high temperatures ought to be maintained a strategic distance from on account of the threat of bury – granular oxidation. Our Nickel 201 Eye Nuts is touchy to entomb – granular assault from sulfur and metals, for example, lead, tin, zinc, and bismuth that have low softening focuses. Conscientious consideration must be practiced in these Nickel 201 Hex Bolts to expel all hints of shaping oils, checking paints and shop soil before warming.

Rimco Overseas are the main maker of high respectability Nickel 201 Fasteners(e.g. fasteners, set screws, stud-screws, nuts and washers), taking care of customers' demanding requests for basic applications in antagonistic situations. Regardless of whether for seaward (lightness and petrochemical), seawater, siphon, valve or atomic, the requests for a remarkable administration and supply is endless. We think producing darting in colorful materials is a fine art and it is something we have idealized at Vision Alloys.

Our Nickel 201 Fasteners item go incorporates Nickel 201 Bolts, Hexagon head fastener, Hexagon head screw, Round head square neck fastener, Hexagon attachment head top sink full string and half string, Hexagon wood screw, Hexagon attachment catch head screw, Hexagon attachment catch spine screw, Hexagon attachment counter sunk head top tighten full string and half string, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon rib nuts, strung bars, dowel screws, Plain/Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and some more. We give items according to DIN, ANSI, JIS measures.

At the point when the errand calls for Nickel 201 Fasteners, call for Vision Alloys. Nickel 201 can be cold shaped by every single regular strategy, but since nickel combinations have more prominent solidness than hardened steels more power is required to play out the operations.Nickel 201 is the low carbon variant of Nickel 200. It is liked to Nickel 200 for applications including presentation to temperatures above 600°F. With low base hardness and lower work-solidifying rate, it is especially suited for cold forming.If we don't have your Nickel 201 Nuts in stock (Inch or Metric) we can have these made to your determination.



Nickel 201 Bolts Specifications

Material : Nickel 201 Bolts
Standard : DIN, ASTM, BS and all International Standards
Length : 3 mm to 200 mm
Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Type : Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts.



Chemical Properties of Nickel Bolts 201

Ni

Mn

C

Si

Fe

Cu

S

Max

0.35

0.02

0.35

0.40

0.25

0.01

Min

99.0



Physical Properties of Nickel Bolts 201

Density 8.89 g/cm³ 0.321 lb/in³
Melting Point 1446°C 2635°F
Coefficient of Expansion 13.1 μm/m °C (20 – 100°C) 7.3 x 10-6 in/in °F (70 – 212°F)
Modulus of Rigidity 82 kN/mm² 11893 ksi
Modulus of Elasticity 207 kN/mm² 30000 ksi

Mechanical Properties of Nickel Bolts 201

Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation (%) Hardness (HRB)
Rod & Bar Hot Finished 60-85 15-45 55-35 45-80
Rod & Bar Cold Drawn/Annealed or Hot-Finished/Annealed 55-75 15-30 55-40 45-70
Plate Hot-Rolled/Annealed 55-80 15-40 60-40 45-75
Sheet Annealed 55-75 15-30 55-40 70 max
Tube & Pipe Seamless Annealed 55-75 12-30 60-40 70 max



Types of Nickel 201 Bolts

Nickel 201 Hex Head Bolt Alloy 201 Hex Head Bolt
201 Alloy Hex Head Bolt
201 Nickel Hex Head Bolt
UNS N02201 Hex Head Bolt
WERKSTOFF NR. 2.4068 Hex Head Bolt
ASTM B164 Nickel 201 Hex Head Bolt
Nickel 201 Square Bolt Alloy 201 Square Bolt
201 Alloy Square Bolt
Nickel 201 Square Bolt
201 Nickel Square Bolt
UNS N02201 Square Bolt
WERKSTOFF NR. 2.4068 Square Bolt
ASTM B164 201 Nickel Square Bolt
Nickel 201 U Bolt Alloy 201 U Bolt
201 Alloy U Bolt
201 Nickel U Bolt
UNS N02201 U Bolt
Alloy UNS N02201 U Bolt
ASTM B164 201 Nickel U Bolt
Nickel 201 Eye Bolt Alloy 201 Eye Bolt
201 Alloy Eye Bolt
201 Nickel Eye Bolt
UNS N02201 Eye Bolt
WERKSTOFF NR. 2.4068 Eye Bolt
ASTM B164 201 Nickel Eye Bolt
Nickel 201 T Bolt Alloy 201 T Bolt
201 Alloy T Bolt
201 Nickel T Bolt
UNS N02201 T Bolt
WERKSTOFF NR. 2.4068 T Bolt
ASTM B164 201 Nickel T Bolt
Nickel 201 Hex Bolt Alloy 201 Hex Bolt
201 Alloy Hex Bolt
201 Nickel Hex Bolt
UNS N02201 Hex Bolt
WERKSTOFF NR. 2.4068 Hex Bolt
ASTM B164 201 Nickel Hex Bolt
Nickel 201 Lag Bolt Alloy 201 Lag Bolt
201 Alloy Lag Bolt
201 Nickel Lag Bolt
UNS N02201 Lag Bolt
WERKSTOFF NR. 2.4068 Lag Bolt
ASTM B164 201 Nickel Lag Bolt
Nickel 201 Counter sunk Bolt Alloy 201 Counter sunk Bolt
201 Alloy Counter sunk Bolt
201 Nickel Counter sunk Bolt
UNS N02201 Counter sunk Bolt
WERKSTOFF NR. 2.4068 Counter sunk Bolt
ASTM B164 201 Counter sunk Bolt

ASTM Specifications for Nickel Bolts 201

Pipe Smls Pipe Welded Tube Smls Tube Welded Sheet/Plate Bar Fitting
B161 B622 B161 B622 B162 B160 B163

Characteristics of Nickel Bolts 201

»   Highly resistant to various reducing chemicals
»   Excellent resistance to caustic alkalies
»   High electrical conductivity
»   Excellent corrosion resistance to distilled and natural waters
»   Resistance to neutral and alkaline salt solutions
»   Excellent resistance to dry fluorine
»   Widely used to handle caustic soda
»   Good thermal, electrical and magnetostrictive properties
»   Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations



Applications of Nickel Bolts 201

»   Food processing equipment
»   Marine and offshore engineering
»   Salt production
»   Caustic handling equipment
»   Manufacture and handling of sodium hydroxide, particularly at temperatures above 300° F
»   Reactors and vessels in which fluorine is generated and reacted with hydrocarbons



Other Grades of Nickel Bolts

  • Nickel 200 Bolt
  • Nickel 201 Bolt
  • Nickel Alloy 20 Bolt
