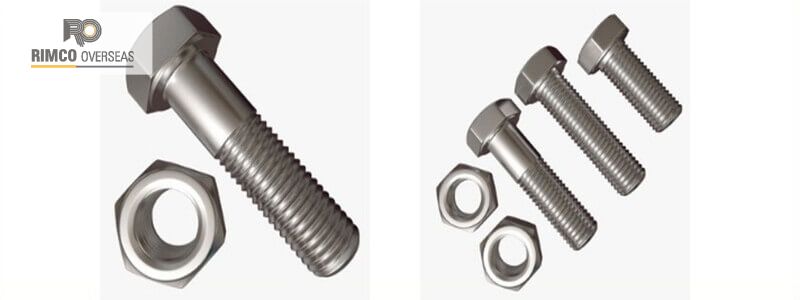

Nickel Bolts 200

Nickel Bolts 200

Nickel 200 jolts are basically unadulterated wroght nickel. At 99.6% unadulterated nickel, it is very impervious to diminishing synthetic substances, and furthermore exceptionally impervious to burning alkalies. Strengthened nickel has a moderately low hardness, and is likewise supported by mechanic for its capacity to be welded. Combination 200 screws produced using this amalgam are additionally known by UNS N02200 clasp. The normal for this amalgam make it well known in the sustenance business (dealing with), petrochem (burning), and furthermore the aviation applications."


Rimco Overseas are the main producer of high honesty Nickel 200 Fasteners (for example fasteners, set screws, stud-screws, nuts and washers), taking care of customers' demanding requests for basic applications in antagonistic situations. Regardless of whether for seaward (lightness and petrochemical), seawater, siphon, valve or atomic, the requests for an excellent administration and supply is endless. We think producing darting in extraordinary materials is a work of art and it is something we have idealized at Vision Alloys.

Our Nickel 200 Fasteners item run incorporates Nickel 200 Bolts, Hexagon head fastener, Hexagon head screw, Round head square neck screw, Hexagon attachment head top tighten full string and half string, Hexagon wood screw, Hexagon attachment catch head screw, Hexagon attachment catch spine screw, Hexagon attachment counter sunk head top sink full string and half string, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon rib nuts, strung bars, dowel screws, Plain/Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and some more. We give items according to DIN, ANSI, JIS measures.

At the point when the undertaking calls for Nickel 200 Fasteners, call for Rimco Overseas. The consumption opposition of Nickel 200 makes it especially helpful for keeping up item immaculateness in the treatment of nourishments, engineered strands, and harsh alkalies; and furthermore in auxiliary applications where protection from erosion is a prime consideration.Other applications incorporate compound transportation drums, electrical and electronic parts, aviation and rocket segments and rocket engine cases.If we don't have your Nickel 200 Fasteners in stock (Inch or Metric) we can have these made to your determination.


Nickel 200 Bolts Specifications

Material : Nickel 200 Bolts
Standard : DIN, ASTM, BS and all International Standards
Length : 3 mm to 200 mm
Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Type : Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts.


Chemical Properties of Nickel Bolts 200

Element Content (%)
Nickel Bolts, Ni ≥ 99
Iron, Fe ≤ 0.40
Manganese, Mn ≤ 0.35
Silicon, Si ≤ 0.35
Copper, Cu ≤ 0.25
Carbon, C ≤ 0.15
Sulfur, S ≤ 0.010


Physical Properties of Nickel Bolts 200

Density 8.89 g/cm³ 0.321 lb/in³
Melting Point 1446°C 2635°F
Coefficient of Expansion 13.3 μm/m °C (20 – 100°C) 7.4 x 10-6 in/in °F (70 – 212°F)
Modulus of Rigidity 81 kN/mm² 11748 ksi
Modulus of Elasticity 204 kN/mm² 29588 ksi

Mechanical Properties of Nickel Bolts 200

Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation (%) Hardness (HRB)
Rod & Bar Hot Finished 60-85 15-45 55-35 45-80
Rod & Bar Cold Drawn/Annealed or Hot-Finished/Annealed 55-75 15-30 55-40 45-70
Plate Hot-Rolled/Annealed 55-80 15-40 60-40 45-75
Sheet Annealed 55-75 15-30 55-40 70 max
Tube & Pipe Seamless Annealed 55-75 12-30 60-40 70 max


Types of Nickel 200 Bolts

Nickel 200 Hex Head Bolt Nickel 200 Alloy Hex Head Bolts
Nickel 200 Hex Head Bolt
ASTM B160 Nickel 200 Hex Head Bolt
Nickel 200 Square Bolt Nickel 200 Alloy Square Bolts
Nickel 200 Square Bolt
ASTM B160 Nickel 200 Square Bolt
Nickel 200 U Bolt Nickel 200 Alloy U Bolts
Nickel 200 U Bolt
ASTM B160 Nickel 200 U Bolt
Nickel 200 Eye Bolt Nickel 200 Alloy Eye Bolts
Nickel 200 Eye Bolt
ASTM B160 Nickel 200 Eye Bolt
Nickel 200 T Bolt Nickel 200 Alloy  T Bolts
Nickel 200 T Bolt
ASTM B160 Nickel 200 T Bolt
Nickel 200 Hex Bolt Nickel 200 Alloy Hex Bolts
Nickel 200 Hex Bolt
ASTM B160 Nickel 200 Hex Bolt
Nickel 200 Lag Bolt Nickel 200 Alloy Lag Bolts
Nickel 200 Lag Bolt
ASTM B160 Nickel 200 Lag Bolt
Nickel 200 Counter sunk Bolt Nickel 200 Alloy Counter sunk Bolts
Nickel 200 Counter sunk Bolt
ASTM B160 Nickel 200 Counter sunk Bolt


ASTM Specifications for Nickel Bolts 200

Pipe Smls Pipe Welded Tube Smls Tube Welded Sheet/Plate Bar Fitting
B161 B622 B161 B622 B162 B160 B163

Characteristics of Nickel Bolts 200

»   Highly resistant to various reducing chemicals
»   Excellent resistance to caustic alkalies
»   High electrical conductivity
»   Excellent corrosion resistance to distilled and natural waters
»   Resistance to neutral and alkaline salt solutions
»   Excellent resistance to dry fluorine
»   Widely used to handle caustic soda
»   Good thermal, electrical and magnetostrictive properties
»   Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations


Applications of Nickel Bolts 200

»   Food processing equipment
»   Marine and offshore engineering
»   Salt production
»   Caustic handling equipment
»   Manufacture and handling of sodium hydroxide, particularly at temperatures above 300° F
»   Reactors and vessels in which fluorine is generated and reacted with hydrocarbons


Other Grades of Nickel Bolts

  • Nickel 200 Bolt
  • Nickel 201 Bolt
  • Nickel Alloy 20 Bolt
