Fish Bolts

Fish Bolts

Fish bolts with rail point plates to unite bar affiliations and Rimco Overseas can give a broad assortment of fish bolts with all sizes delivered by various all-inclusive standards, for instance, BS, ASTM and Din, etc.

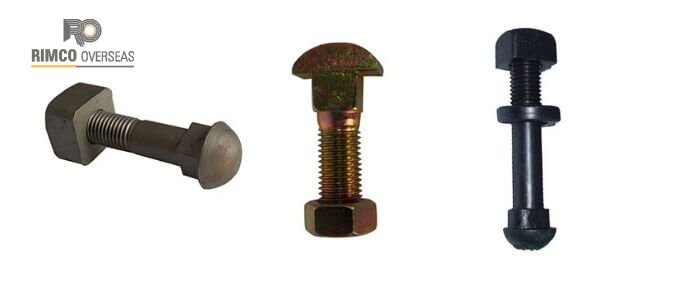

fish-bolts-manufacturer-supplier-importer-exporter-stockholder

Fish Bolts Specification

Railway Fish bolt
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical
properties
Tensile strength: ≥400Mpa Tensile strength: ≥500Mpa Tensile strength:≥800Mpa  Tensile strength: ≥1000Mpa
Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
Elongation:≥22% Elongation:≥20% Elongation:≥12% Elongation:≥9%
Cold bending:
90 degree without crac
Cold bending:
90 degree without crac
Cold bending:
90 degree without crac
Cold bending:
90 degree without crac
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard
refers
UIC864-2

Diamond Neck Fish Bolts

Diameter Length Weight (Kg)
7/8 4-1/2 0.563
7/8 5-1/2 0.651
1 5-1/4 0.889
1 5-3/4 0.895
Note: All fish bolt dimensions given in inches.

Button Head Oval Neck Fish Bolt

Diameter
Length Weight (Kg)
1/2" 1-3/4" 0.097
1/2" 2" 0.10
1/2" 2-1/4 0.112
5/8 2-1/2 0.183
3/4 3 0.328
3/4 3-1/2 0.339
3/4 4 0.356
7/8 4-1/2 0.559
7/8 5 0.593
1 5 0.8
1 5-1/2 0.839
1 6 0.879
1-1/16 6 0.995
1-1/8 6-1/2 1.186

Agico Rail Fish Bolt Description

  • Name : Fish bolt
  • Standards : GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS etc
  • Grade: 4.8, 6.8, 8.8, 10.9, 12.9
  • Material: Q235, 45#, 40Cr, 20Mntib, stainless steel, etc
  • Size: M12-M24 or upon customer request
  • Length: 45mm-145mm or upon customer request
  • Surface: Plain, black, zinc-plated, or according to customers' requirement
  • Usage : It is used to fix the rail fish plates onto rails.
  • Non-standard OEM is available if the buyer provides a drawing or sample.
  • Samples : samples are free.



Fish Bolts Material & Grade

  •  304 Stainless Steel Fish Bolts
  •  304L Stainless Steel Fish Bolts
  •  904L Stainless Steel Fish Bolts
  •  17-4PH Stainless Steel Fish Bolts
  •  304H Stainless Steel Fish Bolts
  •  310 Stainless Steel Fish Bolts
  •  321 Stainless Steel Fish Bolts
  •  347 Stainless Steel Fish Bolts
  •  410 Stainless Steel Fish Bolts
  •  310S Stainless Steel Fish Bolts
  •  316 Stainless Steel Fish Bolts
  •  316H Stainless Steel Fish Bolts
  •  316L Stainless Steel Fish Bolts
  •  317 Stainless Steel Fish Bolts
  •  317L Stainless Steel Fish Bolts
  •  321H Stainless Steel Fish Bolts
  •  446 Stainless Steel Fish Bolts


Carbon Steel Fish Bolts

  • A307 Fish Bolts
  • A563 Fish Bolts


Alloy Steel Fish Bolts

  • A193 Fish Bolts
  • A320 Fish Bolts



Inconel Fish Bolts

  • Incoloy 925 Fish Bolts
  • Incoloy 825 Fish Bolts
  • Inconel 625 Fish Bolts
  • Inconel 601 Fish Bolts
  • Inconel 602 Fish Bolts
  • Inconel 603 Fish Bolts
  • Incoloy 800 Fish Bolts
  • Incoloy 800H Fish Bolts
  • Inconel 600 Fish Bolts
  • Inconel 686 Fish Bolts


Monel Fish Bolts

  • Monel K-500 Fish Bolts
  • Monel 400 Fish Bolts


Hastelloy Fish Bolts

  • Hastelloy C22 Fish Bolts
  • Hastelloy C276 Fish Bolts


Titanium Fish Bolts

  • Titanium Grade 5 Fish Bolts
  • Titanium Grade 2 Fish Bolts



Fish Bolts As Per ASTM Specification

  • ASTM A193 Fish Bolts
  • ASTM A307 Fish Bolts
  • ASTM A320 Fish Bolts
  • ASTM A325 Fish Bolts
  • ASTM A354 Fish Bolts
  • ASTM A449 Fish Bolts
  • ASTM A490 Fish Bolts
  • ASTM F593 Fish Bolts
  • ASTM F1554 Fish Bolts
  • ASTM F3125 Fish Bolts



Fish Bolts As Per DIN Specification

  • DIN 6921 Fish Bolts
  • DIN 603 Fish Bolts
  • DIN 2510 Fish Bolts
  • DIN 580 Fish Bolts
  • DIN 582 Fish Bolts
  • DIN 444 Fish Bolts
  • DIN 939 Fish Bolts
  • DIN 933 Fish Bolts
  • DIN 931 Fish Bolts
  • DIN 976 Fish Bolts
  • DIN 912 Fish Bolts
  • DIN 6325 Fish Bolts
  • DIN 6914 Fish Bolts
  • DIN 3570 Fish Bolts
  • DIN 7990 Fish Bolts
  • DIN 1B Fish Bolts
  • DIN 529 Fish Bolts
