Anchor Bolts

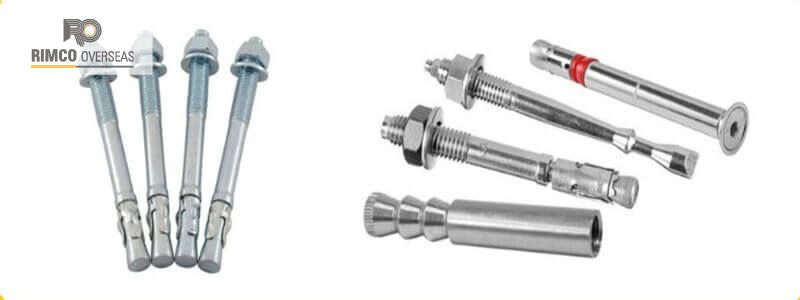

Anchor Bolts

The Rimco Overseas stocks an important supply of Anchor for business, mechanical, utility, and OEM foundations. We have Fasteners, for instance, screws, Bolts Anchor Bolt , get, nuts, washers, and studs available in a couple of examinations and materials. Close to the standard locks we similarly stock B7 screws and studs and treated steel, nuts, Bolts Anchor Bolt, affix, and washers. We moreover pass on an extensive load of mechanical gets, for instance, drop-ins, wedge stays, tapcons, lead, plastic, and void divider Anchors.

Rimco Overseas is a full line get shipper that stocks a wide assembling of things. Regardless of what the insistence, we can find what you're separating for. In case it's not on our racks we will re-fitting the thing to ensure our customers' satisfaction. With K.M Steel India, there is no action to sweeping or little. We oblige any jolt require.

Rimco Overseas is a significant player in the protected business who handles the necessities of any customer. For advancement, we offer Bolts Anchor Bolt to most of the fields with a shocking concentration in electrical, mechanical, and steel erection transient specialists. We have a sweeping store of Bolts Anchor Bolt, perceiving quality appends the vast majority of our dispersing focuses, giving fields, for instance, locks, Anchors, channel and swagger additional things.

anchor-bolts-manufacturer-supplier-importer-exporter-stockholder

Rimco Overseas has set up itself as the market pioneer and is seen for astounding affiliation, strong transport, forcefulness, and total procedures.

we in like way have our business authorities to understand the necessities of our clients, we keep up coordinated heap of Bolts Anchor Bolt in Cities like Abu Dhabi, Riyadh, Manama, Muscat, Doha, Dubai, Damascus, Khartoum, Beirut, Jeddah, Aleppo, Alexandria, Algiers, Amman, Mosul, Cairo, Baghdad, Dammam, Casablanca, Basra, Mecca, Tripoli, Rabat, Sana'a, Arbil, Hilla, Port Said, Marrakech, Medina, Al Hudaydah, Omdurman, Damietta, Homs, Kafr Dawar, Benghazi, Fez, Bahri, Nouakchott, Sulaymaniyah, Safi, Zarqa, Oran, Kirkuk, Ismailia, Tunis, Agadir, Tangier, Sharjah, Shibin El Kom, Misratah, Matrah, Aden, Najaf, Karbala, Latakia, Sousse, Meknes, Gaza, Fallujah, Aswan, Kassala, Al-Ubayyid, Sohag, Kuala Lumpur, Penang, Kuching.

Paralyzes Anchor dazes can show up as either headed dazes, straight shafts, or wound stay dazes. There are three assessments 36, 55, and 105 relegate the base yield quality (ksi) of the stay dash under ASTM F1554 Specification. The staggers can be either cut or roll hung and a weldable survey 55 can be substituted for outline 36 at the supplier's decision. Shading coding on the end - 36 blue, 55 yellow, and 105 red – reinforces basic specific assertion in the field. Continuing on producer and grade checking is allowed under the S2 incredible necessities.

Anchor Bolts: L-stay shocks - standard and nonstandard, J-paralyzes, remarkable turn dazes, single and twofold end studs, DOT staggers, welded plate and pipe get-togethers, hot dive mixed (HDG) get dazes (stock 3/8" to 2"), hung bars up to 20 ft.

Anchor Bolt Grades

F1554 Grade 36 Low carbon, 36 ksi yield steel anchor bolts
F1554 Grade 55 High strength, low alloy, 55 ksi yield steel anchor bolts
F1554 Grade 105 Alloy, heat treated, high strength 105 ksi yield steel anchor bolts



Anchor Bolts Mechanical Properties

Grade Marking Size Inches Tensile, ksi Yield, ksi min Elongation % min RA % min
F1554 Grade 36 AB 36 1/4 to 4 58 - 80 36 23 40
F1554 Grade 55 AB 55 1/4 to 2 75 - 95 55 21 30
2 1/4 to 2 1/2 75 - 95 55 21 22
2 3/4 to 3 75 - 95 55 21 20
3 1/4 to 4 75 - 95 55 21 18
F1554 Grade 105 AB 105 1/4 to 3 125 - 150 105 15 45



Anchor Bolts Chemical Properties

Element Grade 36 Grade 55 & 105
Sizes up to 3/4 Sizes over 3/4 to 1-1/2 Sizes over 1-1/2 to 4
Carbon 0.26% 0.27% 0.28%
Manganese * 0.60 - 0.90% 0.60 - 0.90%
Phosphorus, max 0.04% 0.04% 0.04% 0.04%
Sulfur, max 0.05% 0.05% 0.05% 0.05%
Copper, min (when specified) 0.20% 0.20% 0.20% 0.20%
* Optional with the manufacturer but shall be compatible with weldable steel



ANCHOR BOLT SURFACE COATINGS

Mirror Buffed
Hot Dipped Galvanizing
Epoxy Coating
Electro Polished
Passivation
Teflon Coating
Oxidized
Zinc Plating
Chrome Plating Plow Bolt



Anchor Bolts Material & Grade

  •  304 Stainless Steel Anchor Bolts
  •  304L Stainless Steel Anchor Bolts
  •  904L Stainless Steel Anchor Bolts
  •  17-4PH Stainless Steel Anchor Bolts
  •  304H Stainless Steel Anchor Bolts
  •  310 Stainless Steel Anchor Bolts
  •  321 Stainless Steel Anchor Bolts
  •  347 Stainless Steel Anchor Bolts
  •  410 Stainless Steel Anchor Bolts
  •  310S Stainless Steel Anchor Bolts
  •  316 Stainless Steel Anchor Bolts
  •  316H Stainless Steel Anchor Bolts
  •  316L Stainless Steel Anchor Bolts
  •  317 Stainless Steel Anchor Bolts
  •  317L Stainless Steel Anchor Bolts
  •  321H Stainless Steel Anchor Bolts
  •  446 Stainless Steel Anchor Bolts


Carbon Steel Anchor Bolts

  • A307 Anchor Bolts
  • A563 Anchor Bolts


Alloy Steel Anchor Bolts

  • A193 Anchor Bolts
  • A320 Anchor Bolts



Inconel Anchor Bolts

  • Incoloy 925 Anchor Bolts
  • Incoloy 825 Anchor Bolts
  • Inconel 625 Anchor Bolts
  • Inconel 601 Anchor Bolts
  • Inconel 602 Anchor Bolts
  • Inconel 603 Anchor Bolts
  • Incoloy 800 Anchor Bolts
  • Incoloy 800H Anchor Bolts
  • Inconel 600 Anchor Bolts
  • Inconel 686 Anchor Bolts


Monel Anchor Bolts

  • Monel K-500 Anchor Bolts
  • Monel 400 Anchor Bolts


Hastelloy Anchor Bolts

  • Hastelloy C22 Anchor Bolts
  • Hastelloy C276 Anchor Bolts


Titanium Anchor Bolts

  • Titanium Grade 5 Anchor Bolts
  • Titanium Grade 2 Anchor Bolts



Anchor Bolts As Per ASTM Specification

  • ASTM A193 Anchor Bolts
  • ASTM A307 Anchor Bolts
  • ASTM A320 Anchor Bolts
  • ASTM A325 Anchor Bolts
  • ASTM A354 Anchor Bolts
  • ASTM A449 Anchor Bolts
  • ASTM A490 Anchor Bolts
  • ASTM F593 Anchor Bolts
  • ASTM F1554 Anchor Bolts
  • ASTM F3125 Anchor Bolts



Anchor Bolts As Per DIN Specification

  • DIN 6921 Anchor Bolts
  • DIN 603 Anchor Bolts
  • DIN 2510 Anchor Bolts
  • DIN 580 Anchor Bolts
  • DIN 582 Anchor Bolts
  • DIN 444 Anchor Bolts
  • DIN 939 Anchor Bolts
  • DIN 933 Anchor Bolts
  • DIN 931 Anchor Bolts
  • DIN 976 Anchor Bolts
  • DIN 912 Anchor Bolts
  • DIN 6325 Anchor Bolts
  • DIN 6914 Anchor Bolts
  • DIN 3570 Anchor Bolts
  • DIN 7990 Anchor Bolts
  • DIN 1B Anchor Bolts
  • DIN 529 Anchor Bolts
