904L Stainless steel Bolts

904L Stainless steel Bolts

904l is an austenitic hardened steel assurance offering moderate to high disintegration obstruction. Its high amalgam sythesis offers extraordinary impenetrability to setting and utilization in a broad assortment of circumstances. The low carbon substance of 904L improves its welding characteristics. The chromium, molybdenum and Nickel Bolts substance of 904L give a predominant chloride setting disintegration opposition than that of 316 pure in various circumstances.

stainless-steel-904l-manufacturer-supplier-importer-exporter-stockholder



SS 904L BOLTS SPECIFICATIONS

Material : SS 904L
Standard : DIN, ASTM, BS and all International Standards
Length : 3 mm to 200 mm
Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Type : Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts.



Chemical Composition

Grade C Mn Si P S Cr Mo Ni Cu
904L Min - - - - - 19.0 4.00 23.00 1.00
max. 0.20 2.00 1.00 0.045 0.035 23.0 5.00 28.00 2.00



Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
904L 490 220 35 70-90 typical -
Rockwell Hardness value range is typical only; other values are specified limits.

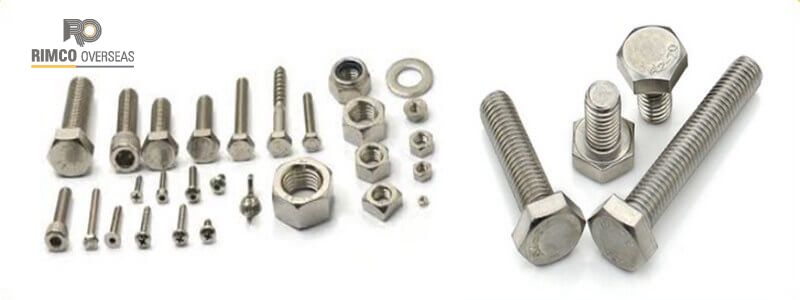

Types of Stainless Steel Bolts

Stainless Steel Hex Head Bolt SS Hex Head Bolts
Stainless Steel Hex Head Bolt
904L Steel Hex Head Bolt
Stainless Steel U Bolt SS U Bolts
Stainless Steel U Bolt
904L Stainless Steel U Bolt
Stainless Steel Eye Bolt SS Eye Bolts
Stainless Steel Eye Bolt
904L Stainless Steel Eye Bolt
Stainless Steel T Bolt SS T Bolts
Stainless Steel T Bolt
904L Stainless Steel T Bolt
Stainless Steel Hex Bolt SS Hex Bolts
Stainless Steel Hex Bolt
904L Stainless Steel Hex Bolt
Stainless Steel Lag Bolt SS Lag Bolts
Stainless Steel Lag Bolt
904L Stainless Steel Lag Bolt
Stainless Steel Counter sunk Bolt SS Steel Counter sunk Bolts
Stainless Steel Counter sunk Bolt
904L Steel Counter sunk Bolt





Other Grades of Stainless Steel Bolts

  • Stainless Steel 304 Bolt
  • Stainless Steel 304L Bolt
  • Stainless Steel 304H Bolt
  • Stainless Steel 310 / 310S Bolt
  • Stainless Steel 310H Bolt
  • Stainless Steel 316 / 316L Bolt
  • Stainless Steel 316Ti Bolt
  • Stainless Steel 317 Bolt
  • Stainless Steel 317L Bolt
  • Stainless Steel 347 Bolt
  • Stainless Steel 347H Bolt
  • Stainless Steel 410 Bolt
  • Stainless Steel 446 Bolt
  • Stainless Steel 904L Bolt



SS Bolt Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry



Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
904L 8000 200 15 - - 13 - 500 850
