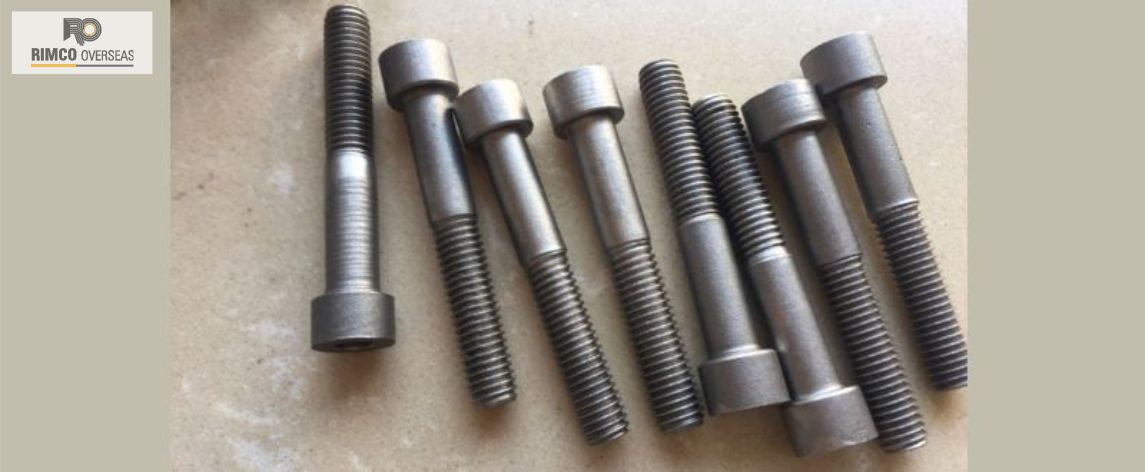

ASTM A193 Grade B8C Bolts
ASTM A193 Grade B8C Bolts, ASTM A193 Grade B8C Bolts manufacturers, ASTM A193 Grade B8C Bolts suppliers, ASTM A193 Grade B8C Bolts exporters, ASTM A193 Grade B8C Bolts importers, ASTM A193 Grade B8C Bolts stockists. ASTM A193 Grade B8C Bolts, ASTM A193 Grade B8C Bolts in mumbai, ASTM A193 Grade B8C Bolts manufacturers in mumbai, ASTM A193 Grade B8C Bolts suppliers in mumbai, ASTM A193 Grade B8C Bolts exporters in mumbai, ASTM A193 Grade B8C Bolts importers in mumbai, ASTM A193 Grade B8C Bolts stockists in Mumbai. ASTM A193 Grade B8C Bolts, ASTM A193 Grade B8C Bolts in india, ASTM A193 Grade B8C Bolts manufacturers in India, ASTM A193 Grade B8C Bolts suppliers in India, ASTM A193 Grade B8C Bolts exporters in India, ASTM A193 Grade B8C Bolts importers in India, ASTM A193 Grade B8C Bolts stockists in India.
ASTM A193 Grade B8C Bolts is a standard material determination for erosion safe review 347 hardened steel latches, for use in high ductile, high temperature and exceptional reason applications, for example, weight channeling and weight vessels darting. Review B8C is a warmth treated, work-solidified or austenitic hardened steel additionally partitioned into class 1 and class 2, each having a recognized rigidity. This detail covers necessities for concoction sythesis, mechanical properties, hardness, warm treatment and suggested nuts-washers for Grade B8C Fasteners.
ASTM A193 Grade B8C Bolts are acknowledged for their sturdiness and consumption opposition includes and are widely material in differed businesses like synthetic concoctions, composts, refineries and different enterprises. Made utilizing of ASTM A193 Grade B8C Bolts these latches are offered to our customers in different sizes, extend and different particulars. Our customers can benefit from us a complete scope of ASTM A193 Grade B8C Bolts that is accessible at industry driving costs. These are broadly utilized crosswise over different businesses for various purposes.
ASTM A193 B8C Stainless Steel Stud Bolts, which has some excellent highlights to offer, for example, prevalent quality, best details, different structures, different sizes, fine quality, minimized size and more. As a confided in name of this area, we hold ability in offering a great scope of ASTM A193 B8C Threaded Rods. With rich industry experience and information, we are occupied with offering an incomparable quality ASTM A193 B8C Stainless Steel Threaded Bars. We are recognized as one of the main names in the market occupied with giving a wide scope of ASTM A193 B8C Stainless Steel Double Ended Studs to the customers.
ASTM A193 B8C Stainless Steel Tie Bars has great mechanical properties with phenomenal protection from numerous destructive conditions. Proffered gathering of ASTM A193 B8C Stainless Steel Tie Rods is immeasurably mainstream in the business for its intense development, longer life and consumption opposition.
ASTM A193 B8C Fasteners Specification
Material |
Specification |
Standards | Size |
Length |
ASTM A193 B8C Fasteners
|
IS BS ASTM |
DIN, ISO, JIS, GB, IS, BS, ASTM | M 02 to M 160 |
3 mm to 200 mm |
Other Types Of ASTM A193 B8C Fasteners
| ASTM A193 B8C Fasteners | SS ASTM A193 B8C Fasteners |
| Stainless Steel B8C Nuts | ASTM A193 B8C Bolts Supplier |
| ASTM A193 B8C Socket Cap Screw | ASTM A193 Bolts Manufacturer |
| B8C Stainless Steel Bolts | ASTM A193 B8C Stud Bolt |
| ASTM A193 Coupler Nuts Exporter | B8C spring washer Stockist |
| ASTM A193 Grade B8C Bolts Flat Washer | ASTM A193 Grade B8C Bolts Countersunk Slotted Screw |
| ASTM A193 Double Ended Stud | Grade B8C Tie Bar Exporter |
| ASTM A193 B8C Square Bolts Supplier | Grade B8C Punched Washer Distributor |
| ASTM A193 Grade B8C Bolts Lock Nut Supplier | B8C Coupler Nuts |
| Grade B8C Double Ended Stud | ASTM A193 Grade B8C Bolts Self Locking Nuts Manufacturer |
| Stainless Steel B8C Studbolt | SS ASTM A193 Grade B8C Bolts Head Bolts |
| ASTM A193 B8C Washers Exporter | B8C Stud Bolt |
| UNS S34700 Stud Bolts Exporter | DIN 1.4550 Fasteners |
| ISO Certified B8C Fasteners Exporter | ASTM A193 B8C Fasteners |
ASTM A193 Grade B8C Bolts Fasteners Useful Information
| IdentificationGrade Mark | Specification | Fastener Description | Material | Nominal Size Range (in.) | Mechanical Properties | ||
|---|---|---|---|---|---|---|---|
| Proof Load (psi) |
Yield Strength Min (psi) |
Tensile Strength Min (psi) |
|||||
| B8 | ASTM A193 Grade B8 | AISI 304 | 1/4 and larger | — | 30,000 | 75,000 | |
| B8C | ASTM A193 Grade B8C Bolts | AISI 347 | |||||
| B8M | ASTM A193 Grade B8M | AISI 316 | |||||
| B8T | ASTM A193 Grade B8T | Bolts,Screws,Studs for High-Temperature Service | AISI 321 | 1/4 and larger |
— | 30,000 | 75,000 |
| B8 | ASTM A193 Grade B8 | AISI 304Strain Hardened | 1/4 thr 3/4Over 3/4 thru 1Over 1 thru 1-1/4Over 1-1/4 thru 1-1/2 | ——— | 100,00080,00065,000
50,000 |
125,000115,000105,00
0100,000 |
|
| B8C | ASTM A193 Grade B8C Bolts | AISI 347Strain Hardened | |||||
| B8M | ASTM A193 Grade B8M | AISI 316Strain Hardened | 95,00080,00065,000
50,000 |
110,000100,00095,00
090,000 |
|||
| B8T | ASTM A193 Grade B8T | AISI 321Strain Hardened | 100,00080,00065,000
50,000 |
125,000115,000105,000
100,000 |
|||
| L43 | ASTM A320Grade L43 | Bolts,Screws,Studs for Low-Temperature Service | AISI 4340 | 1/4 thru 4 | — | 105,000 | 125,000 |
| B8 | ASTM A320Grade B8 | Bolts,Screws,Studs for Low-Temperature Service | AISI 304 | 1/4 and larger | — | 30,000 | 75,000 |
| B8C | ASTM A320Grade B8C | AISI 347 | |||||
| B8T | ASTM A320Grade B8T | AISI 321 | |||||
| B8F | ASTM A320Grade B8F | AISI 303or 303Se | |||||
| B8M | ASTM A320Grade B8M | AISI 316 | |||||
| B8 | ASTM A320Grade B8 | AISI 304 | 1/4 thru 3/4Over 3/4 thru 1Over 1 thru 1-1/4Over 1-1/4 thru 1-1/2 | ——— | 100,00080,00065,00
50,00 |
100,00080,00065,00
50,00 |
|
| B8C | ASTM A320Grade B8C | AISI 347 | |||||
| B8F | ASTM A320Grade B8F | AISI 303or 303Se | |||||
| B8M | ASTM A320Grade B8M | AISI 316 | |||||
| B8T | ASTM A320Grade B8T | AISI 321 | |||||
Chemical Composition
| Element | Austenitic Stainless Steel |
|---|---|
| AISI 347 | |
| CompositionA, % | |
| Carbon | 0.08 max |
| Manganese | 2.00 |
| Phosphorus | 0.045 max |
| Sulfur | 0.030 max |
| Silicon | 1.00 max |
| Chromium | 17.00 - 19.00 |
| Nickel | 9.00 - 12.00 |
| Columbium + tantalum | 10 x Carbon Content - 1.10 |
Mechanical Properties
| Tensile Class | Diameter, Inch | Tensile Strength, min, ksi |
Yield Strength, min, 0.2% offset, ksi |
Elongation in 4D, min, % |
Reduction of Area, min, % |
Hardness, max |
|---|---|---|---|---|---|---|
| Class 1A | All Sizes | 75 | 30 | 30 | 50 | 223 HBW or 96 HRBC |
Class 2B |
3/4 and under | 125 | 100 | 12 | 35 | 321 HBW or 35 HRC |
| over 3/4 to 1, inclusive | 115 | 80 | 15 | 35 | ||
| over 1 to 1-1⁄4, inclusive | 105 | 65 | 20 | 35 | ||
| over 1-1⁄4 to 11⁄2, inclusive | 100 | 50 | 28 | 45 |
ASTM A193 B8C Bolts Industrial Applications
» ASTM A193 B8C Bolts uses in Aircraft Exhaust Manifolds
» ASTM A193 B8C Bolts uses in Off-Shore Oil Drilling Companies
» ASTM A193 B8C Bolts uses in Power Generation
» ASTM A193 B8C Bolts uses in Petrochemicals
» ASTM A193 B8C Bolts uses in Gas Processing
» ASTM A193 B8C Bolts uses in Specialty Chemicals
» ASTM A193 B8C Bolts uses in Pharmaceuticals
» ASTM A193 B8C Bolts uses in Pharmaceutical Equipment
» ASTM A193 B8C Bolts uses in Spiral Welded tube for burner pipes and flues
» ASTM A193 B8C Bolts uses in Sea Water Equipment
» ASTM A193 B8C Bolts uses in Heat Exchangers
COATINGS
