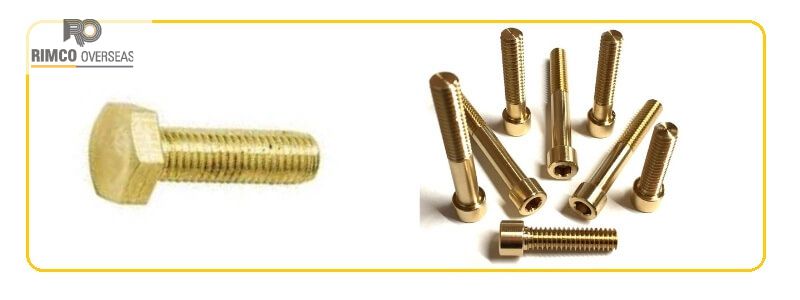

Phosphor Bronze Bolts

Phosphor Bronze Bolts

Rimco Overseas is one of the known makers, providers and exporters of Phosphorous Bronze bolts, which has some brilliant highlights to offer, for example, Fine completion, Quality affirmed, Abrasion opposition and then some. We additionally offer the equivalent in various sorts, for example, PHOSPHOROUS BRONZE, BOLTS, PHOSPHOROUS BRONZE NUTS, PHOSPHOROUS BRONZE WASHERS, and PHOSPHOROUS BRONZE STUD BOLTS. It likewise offer some other extraordinary highlights, for example, Longer administration life, Anti-destructive, Dimensionally steady, Anti-slip flooring, Resistant to unfriendly climate conditions, Cost proficiency, Resistant metal, Excellent completion, Defect free develop, High sturdiness and that's only the tip of the iceberg. We are an acclaimed name occupied with offering our valuable customers a predominant quality scope of these latches. In our humble adventure, we have presented a subjective scope of items including Phosphor Bronze Bolts bolts.

phosphor-bronze-manufacturer-supplier-importer-exporter-stockholder

Our profoundly gifted experts make this item from the best grade crude material and complex innovation at our superior assembling unit. These latches are ideal for applications where unrivaled quality and better erosion opposition is required. Likewise, these are additionally valuable for some, sheet-metal combinations, which are ideally not welded, as twisting and alteration of material can happen. These latches are principally utilized in mechanical machines and are produced utilizing ideal review crude material and refined innovation in synchronization with industry measures. Usually utilized in Ship Building Industry, Car Manufacturing Industry, Electricity Industry, Hardware Items, and then some. These latches are produced utilizing high-review tempered steel that is produced using real specialists of the business. Purchase Phosphor Bronze Bolts Fasteners at sensible rates from us.

Rimco Overseas Is An ISO: 9001, 14001 & OHSAS: 18001 Certified Company. We Are industry pioneer in offering what is without a doubt the most thorough Phosphorous Bronze Bolts range and stock in all sizes of Bolts. Producer, provider & exporter of high solid and solid Phosphorous Bronze Hex Bolts. We are proactive association Specialist in Phosphorous Bronze Bolts and Other Quality Products that meet and surpass clients explicit prerequisites and subsequently guarantee total fulfillment. We are equipped for giving an immense scope of materials like Phosphorous Bronze Round Head Bolts, Phosphorous Bronze Bolts Phosphorous Bronze Bolts from stock, to suit your necessities. We have incredible delight to present ourselves as one of the main Stockists & Suppliers of, Phosphorous Bronze Hex Cap Screw Phosphorous Bronze Machine Screws, Phosphorous Bronze Hex Bolts, Phosphorous Bronze Heavy Hex Bolts, Phosphorous Bronze Socket Cap Screws and Other scope of Bolts.



Chemical Composition of Phosphor Bronze Bolts

Component Wt. %
Cu 90.5 – 92.8
Fe Max 0.1
P 0.03 – 0.35
Pb Max 0.05
Sn 7 – 9
Zn Max 0.2



Physical Properties of Phosphor Bronze Bolts

Physical Properties Metric English Comments
Density 8.8 g/cc 0.318 lb/in³ at 20°C (68°F)

Mechanical Properties of Phosphor Bronze Bolts

Physical Properties Metric English Comments
Hardness, Rockwell B 85 85
Tensile Strength, Ultimate 550 MPa 79800 psi
Tensile Strength, Yield 450 MPa 65300 psi
Elongation at Break 33 % 33 % in 50 mm
Modulus of Elasticity 110 GPa 16000 ksi
Poisson’s Ratio 0.341 0.341
Machinability 20 % 20 % UNS C36000 (free-cutting brass) = 100%
Shear Modulus 41 GPa 5950 ksi
Electrical Properties
Electrical Resistivity 1.33e-005 ohm-cm 1.33e-005 ohm-cm at 20°C (68°F)
Thermal Properties
CTE, linear 250°C 18.2 µm/m-°C 10.1 µin/in-°F from 20-300°C (68-570°F)
Heat Capacity 0.38 J/g-°C 0.0908 BTU/lb-°F
Thermal Conductivity 62 W/m-K 430 BTU-in/hr-ft²-°F at 20°C (68°F)
Melting Point 880 – 1025 °C 1620 – 1880 °F
Solidus 880 °C 1620 °F
Liquidus 1025 °C 1880 °F
Processing Properties
Annealing Temperature 475 – 675 °C 887 – 1250 °F



Characteristics of Phosphor Bronze Bolts

»   Excellent elasticity
»   High strength
»   Outstanding malleability for bending and drawing
»   High electrical conductivity
»   No seasonal cracking or age hardening
»   Non-magnetic
»   Easy plating
»   High resistance to chemical corrosion
»   High wear resistance



Applications of Phosphor Bronze Bolts

»   Marine Application
»   Bearings, Gears, Worm gears
»   Springs and Bushes
»   Electrical applications
»   Aerospace, chemical and marine applications
»   Chemical applications
»   Springs
